Temperature Range and Application Fit
The 10129380-906002ALF: The 110 VDC voltage rating and 3 A current limit confirm this is a signal interconnect, not a power bus. RoHS compliant per current directive.

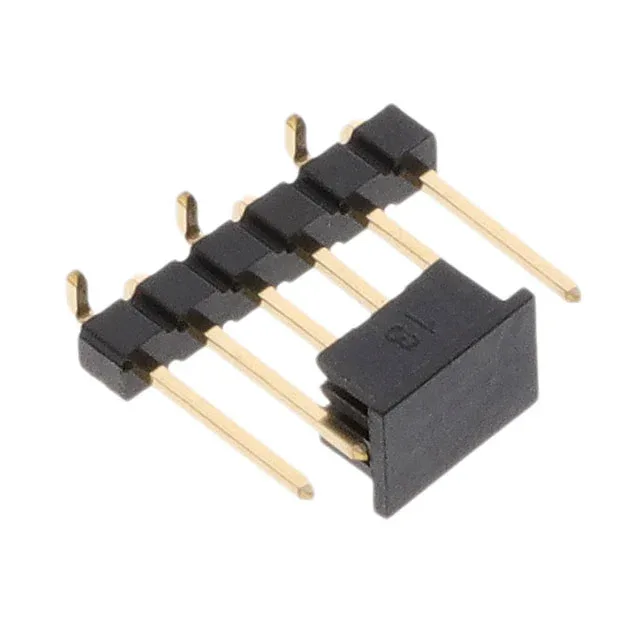

Amphenol ICC (FCI) EconoStik 10129380 series, 10129380-906002ALF – 6-position single-row unshrouded male pin header, surface-mount, 0.100" (2.54 mm) pitch, gold-plated square pins, 3 A, UL94 V-0.
$0.4300Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | EconoStik™ 10129380 |
| Gender | Male Pin |
| Mounting type | Surface Mount |
| Connector type | Header, Cuttable |
| Fastening type | Push-Pull |
| Voltage rating | 110VDC |
| Current rating | 3A |
| Operating temperature | -55°C~105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Shrouding | Unshrouded |
| Termination | Solder |
| Applications | General Purpose, Industrial, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 6 |
| Contact finish - mating | Gold |
| Contact length - mating | 0.318\" (8.08mm) |
| Contact finish thickness - mating | 1.00µin (0.025µm) |
Product details
Frequently asked questions
What is the pinout of 10129380-906002ALF?
Single-row, 6 positions, all loaded. The unshrouded header exposes the square male pins; the mating receptacle must provide polarization. No internal pin-to-pin connections – each pin is an independent circuit.
