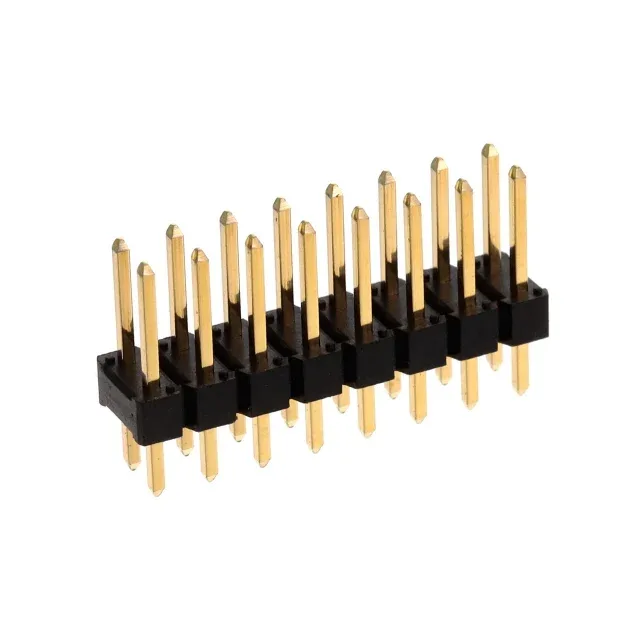

10129381-916001BLF — Amphenol product photo
Amphenol

10129381-916001BLF 2.54mm Pin Header, 16 Pos, Dual Row

MPN10129381-916001BLF
Active

Amphenol ICC (FCI) EconoStik™ 10129381, 16-position, dual-row, unshrouded pin header, 0.100" (2.54 mm) pitch, through-hole solder termination, gold-plated contacts, 3 A rating, UL94 V-0.

$0.3200Ref. price · indicative, final on quote
10129381-916001BLF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

10129381-916001BLF Technical Specifications
ParameterValue
SeriesEconoStik™ 10129381
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader, Cuttable
Fastening typePush-Pull
Voltage rating110VDC
Current rating3A
Operating temperature-55°C~105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.100\" (2.54mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageBulk
ShroudingUnshrouded
TerminationSolder
ApplicationsGeneral Purpose, Industrial, Medical, Telecommunications
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions16
Row spacing - mating0.100\" (2.54mm)
Contact length - post0.120\" (3.05mm)
Overall contact length0.450\" (11.43mm)
Contact finish - matingGold
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - mating1.00µin (0.025µm)

Product details

The 10129381-916001BLF: With 16 positions loaded across two rows, the header occupies 8 positions per row — the board real estate is 0.800" (20.32 mm) along the length plus the 0.100" row spacing.

Current capacity and contact interface

The gold flash (1.00 µinch) on the mating face is a thin deposit — it prevents oxidation during storage and first few mates, but for applications requiring 100+ mating cycles, a thicker gold (15 µinch or more) is preferred.

No stock-holding claim — availability is verified per inquiry.

Comparing the 16-position to its 14- and 12-position siblings

The 10129381-916001BLF (16 positions) is the highest circuit count in the EconoStik 10129381 dual-row family.

Frequently asked questions

What is the closest functional second-source for 10129381-916001BLF?

Within the same EconoStik 10129381 series, the 14-position variant 10129381-914004BLF is the closest functional alternative if your BOM allows fewer circuits. Both share the same 0.100" pitch, dual-row layout, gold flash contacts, and 3 A rating — only the position count differs.
