Amphenol ICC (FCI) BERGSTIK® unshrouded header, 26 positions, 2 rows, 0.100" (2.54 mm) pitch, surface-mount termination, gold or GXT™ mating finish, 3 A, UL94 V-0, RoHS compliant.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Gender | Male Pin |
| Mounting type | Surface Mount |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C ~ 130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 26 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |

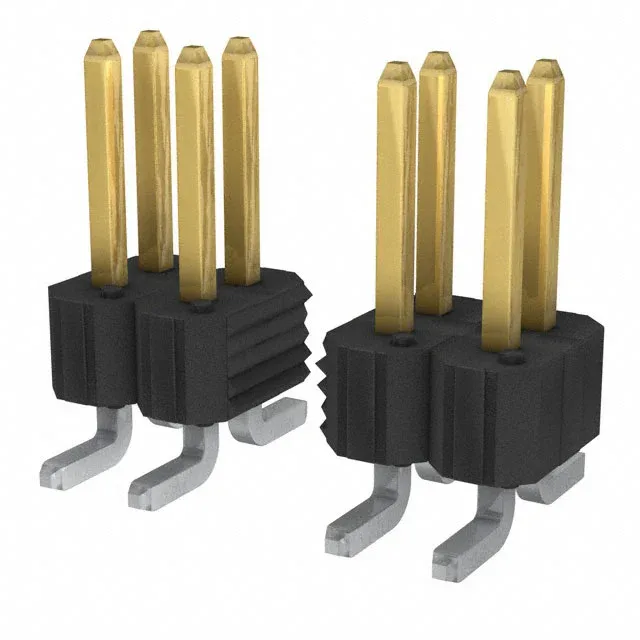

The 54202-S0813LF: The unshrouded male pins are square, 0.230" (5.84 mm) mating length, and the connector is surface-mount soldered to the PCB.
The mating contacts are finished with gold or Gold, GXT™ — a harder gold alloy that resists wear better than standard gold. The thickness is 15 µinch (0.38 µm) minimum, which is enough for reliable low-resistance contact over hundreds of cycles.
The 54202-S0807LF is the closest functional sibling in the same BERGSTIK® series.
The mating pitch is 0.100" (2.54 mm), with the same 0.100" row spacing. This is the standard 0.100-inch grid, so it mates with any compatible 0.100" pitch receptacle.
The only difference is the number of positions: 26 on this part versus 14 on the -S0807LF. All other specs — pitch, plating, material, mounting, current rating — are identical.
