The 68685-306LF: Compared to the 8-position 68685-308LF or the 10-position 68685-310LF, this 6-position variant is the compact choice for lower circuit-count board-to-board links where the same pitch and plating grade apply.

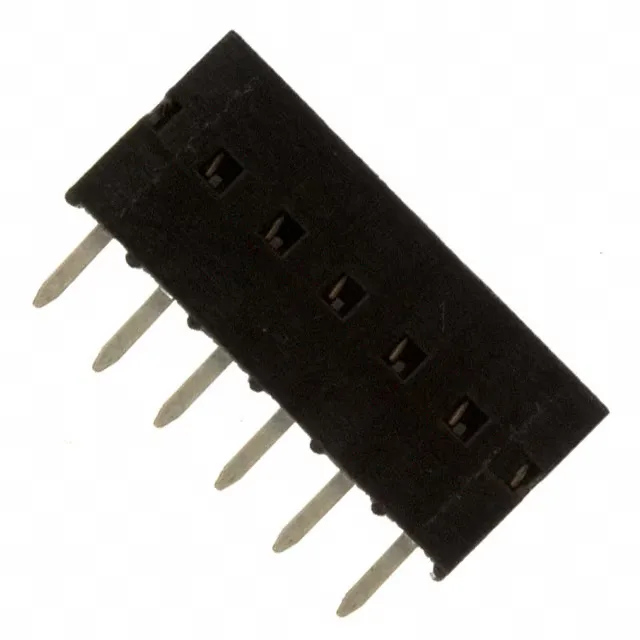

68685-306LF Amphenol ICC Dubox™ 6-Position Female Socket
MPN68685-306LF
Active
Amphenol ICC (FCI) Dubox™ board-to-board receptacle, 6 positions, 0.100" (2.54mm) pitch, through-hole solder termination, 30.0µin gold mating finish, UL94 V-0 PPS housing, -65°C~125°C operating range.
$2.9100Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesDubox™
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Dubox™ |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Voltage rating | 1000V |
| Operating temperature | -65°C~125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.276\" (7.00mm) |
| Insulation material | Polyphenylene Sulfide (PPS) |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Tube |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 6 |
| Contact finish - post | Tin |
| Contact length - post | 0.115\" (2.92mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
Is 68685-306LF RoHS compliant?
Yes, the 68685-306LF is listed as RoHS compliant.
Is 68685-306LF suitable for automotive applications?
Yes, the connector is listed for automotive, general purpose, industrial, and telecommunications applications.
How can I order 68685-306LF or check stock?
This part is sourced per RFQ through independent distribution.
