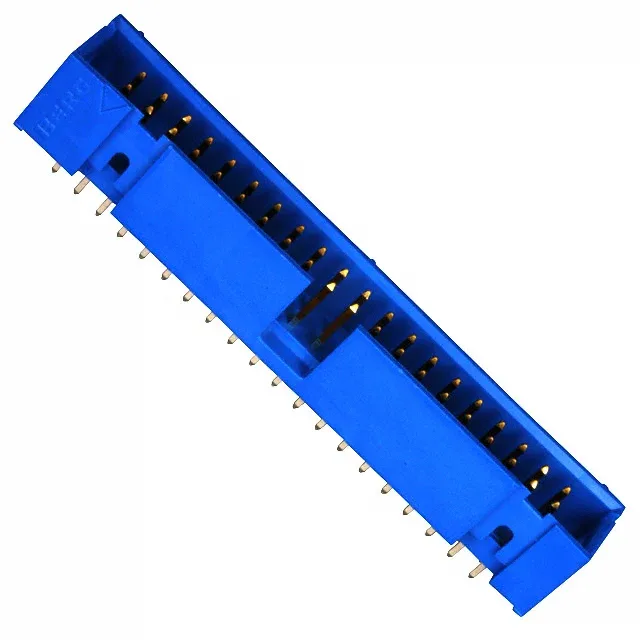

75869-107LF — Amphenol product photo
Amphenol

75869-107LF Amphenol ICC Quickie™ Header 40 Pos 2.54mm

MPN75869-107LF
Active

Amphenol ICC (FCI) Quickie™ series header, 75869-107LF, 40 positions, 2.54mm pitch, dual-row, through-hole, shrouded - 4 wall, male pin, gold GXT™ mating finish, UL94 V-0, blue insulation.

$2.8700Ref. price · indicative, final on quote
75869-107LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

75869-107LF Technical Specifications
ParameterValue
SeriesQuickie™
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader
Fastening typePush-Pull
Contact materialPhosphor Bronze
Insulation colorBlue
Insulation height0.377\" (9.57mm)
Insulation materialThermoplastic, Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTube
FeaturesKeying Slot
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions40
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.120\" (3.05mm)
Contact finish - matingGold, GXT™
Contact length - mating0.236\" (6.00mm)
Contact finish thickness - post78.7µin (2.00µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

The full four-wall shroud protects the 0.236" (6.00mm) long square pins during mating, which matters when the cable assembly is plugged in by feel inside a panel. A keying slot in the shroud ensures the connector only mates one way — no reversed or offset connections on a multi-header backplane.

The phosphor bronze base spring keeps contact normal force consistent across temperature swings inside an enclosure.

RoHS compliant per the LF (lead-free) designation.

The 75869-107LF sits at 40 positions — a mid-range count in the Quickie dual-row lineup. The 75869-105LF is the 26-position sibling with the same 30.0µin gold plating and identical footprint pitch; the 75869-133LF is the 30-position version.

Frequently asked questions

What is the closest functional equivalent to 75869-107LF?

The 75869-105LF is the closest functional sibling — same 0.100" (2.54mm) pitch, dual-row, gold GXT™ plating, and blue shrouded housing, but with 26 positions instead of 40. If the BOM calls for 40 positions, the -107LF is the direct match; the -105LF only works if the circuit count can drop to 26.

Does 75869-107LF have a keying slot?

Yes, the header includes a keying slot in the shroud. This prevents the mating receptacle from being inserted in the wrong orientation — useful in multi-connector panels where a mis-mate could short adjacent circuits.
