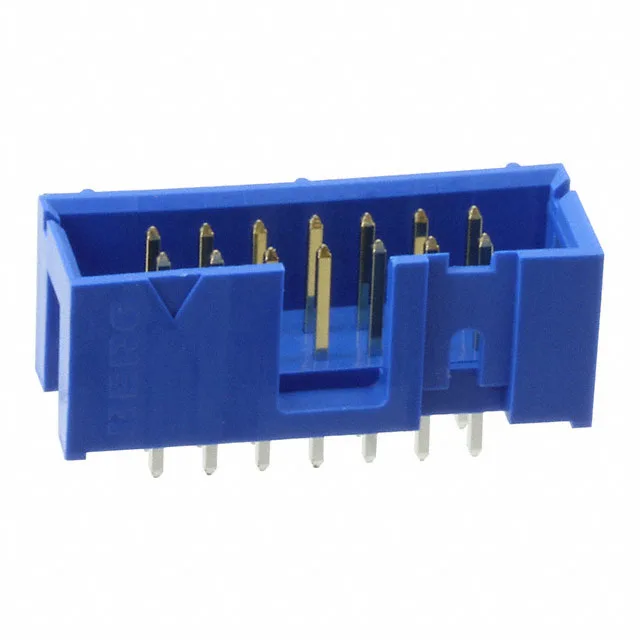

14-Position Shrouded Header for Board-to-Cable Links
For a connector that sees occasional reconnects in a clean environment, this plating grade handles several hundred cycles without wear-through.
The standard package is a tube.
Keying and Housing Features
The header includes a keying slot — a polarisation feature that prevents mis-mating with an incorrectly keyed receptacle. In a low-vibration environment this is sufficient, but for applications with continuous shock or cable strain, a locking header variant would be preferred. The insulation height of 0.377" (9.57mm) and mating pin length of 0.236" (6.00mm) set the z-height budget for the mated assembly.
