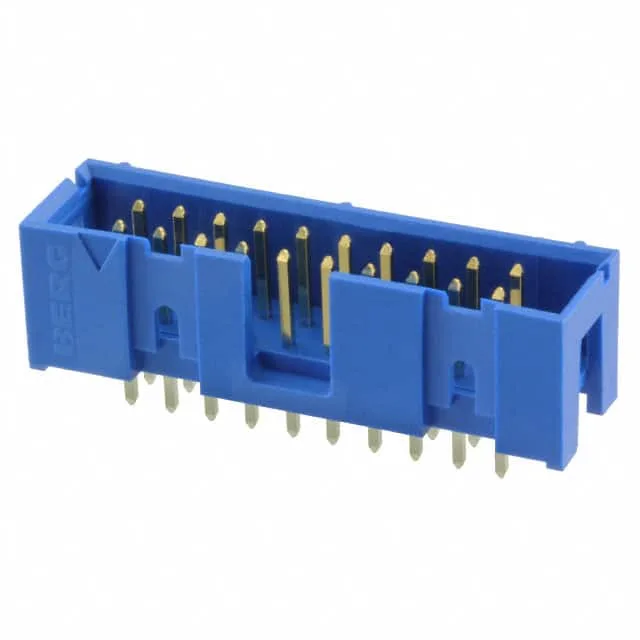

Amphenol ICC (FCI) Quickie™ series, 75869-304LF, board-to-cable/wire header, 20 circuits, 2 rows, 0.100" (2.54mm) pitch, shrouded 4-wall, through-hole solder termination, male square pins, gold GXT™ mating finish, tin post finish, UL94 V-0 blue thermoplastic, RoHS.
| Parameter | Value |
|---|---|
| Series | Quickie™ |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Blue |
| Insulation height | 0.377\" (9.57mm) |
| Insulation material | Thermoplastic, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tube |
| Parameter | Value |
|---|---|
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 20 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.120\" (3.05mm) |
| Contact finish - mating | Gold, GXT™ |
| Contact length - mating | 0.236\" (6.00mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 75869-304LF: That pitch sets the PCB footprint and the per-contact current ceiling — at typical signal levels the temperature rise stays well within the UL94 V-0 housing limit.
The mating contact finish is gold GXT™ at 15.0 µinch (0.38µm) over phosphor bronze base.
The keying slot prevents mismating with unkeyed or wrong-position counterparts.
Sourced through independent distribution against your RFQ. Lifecycle is active (no LTB).
It mates with a Quickie™ series IDC receptacle or crimp-style socket housing (same 0.100" pitch, 20 positions, dual-row). The 4-wall shroud and keying slot guide the mating half into correct orientation.
