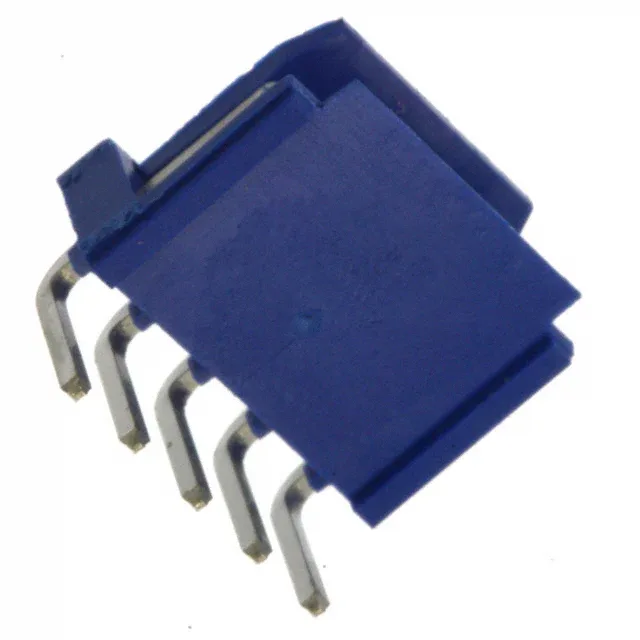

Amphenol ICC (FCI) Dubox™, 76382-405LF, 5-position single-row header, 0.100" (2.54mm) pitch, through-hole right-angle, shrouded 4-wall, friction lock, tin-plated contacts, 3A, -40°C~125°C, UL94 V-0, RoHS, Active.
| Parameter | Value |
|---|---|
| Series | Dubox™ |
| Gender | Male Pin |
| Mounting type | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Friction Lock |
| Current rating | 3A |
| Operating temperature | -40°C~125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Blue |
| Insulation height | 0.209\" (5.30mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 5 |
| Contact finish - post | Tin |
| Contact length - post | 0.134\" (3.40mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.197\" (5.00mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 78.7µin (2.00µm) |
For a panel or harness that sees occasional servicing, the lock is enough to keep the pair mated.
Mating pin length is 0.197" (5.00mm) — standard for a Dubox™ receptacle with a 0.209" (5.30mm) insulation height. Post length is 0.134" (3.40mm) — enough for a standard 1.6mm PCB with through-hole solder.
The 76382-406LF (6-position) and 76382-404LF (4-position) are the direct siblings in the same Dubox™ right-angle, friction-lock series. All share the same 2.54mm pitch, tin plating, 3A rating, and blue insulation — only the circuit count differs.
Yes, the 76382-405LF includes a friction lock on the shrouded 4-wall header.
