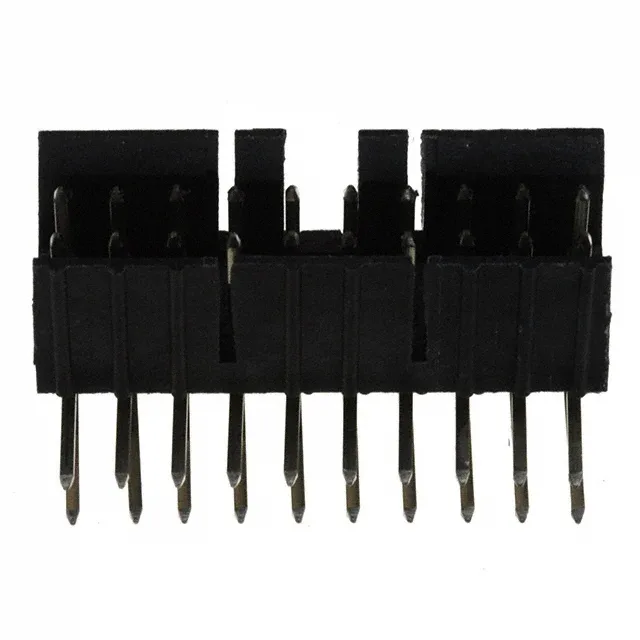

78207-120HLF — Amphenol product photo
Amphenol

78207-120HLF Amphenol ICC (FCI) Header R/A 20POS 2.54mm

MPN78207-120HLF
Active

Amphenol ICC (FCI) Mini-PV™, Basics+ series header, 20 positions, 0.100" (2.54mm) pitch, right-angle through-hole, shrouded 2-wall, friction lock, gold 30µin mating finish, UL94 V-0 black housing.

$2.9000Ref. price · indicative, final on quote
78207-120HLF datasheet
StockIn Stock (20)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

78207-120HLF Technical Specifications
ParameterValue
SeriesMini-PV™, Basics+
GenderMale Pin
Mounting typeThrough Hole, Right Angle
Connector typeHeader
Fastening typeFriction Lock
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.303\" (7.70mm)
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
FeaturesKeying Slot
ShroudingShrouded - 2 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions20
Row spacing - mating0.100\" (2.54mm)
Contact length - post0.120\" (3.05mm)
Contact finish - matingGold or Gold, GXT™
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Board Layout Fit: 20-Position Right-Angle Header

The 78207-120HLF: The friction lock holds the mating receptacle in place under moderate vibration — no secondary latch or screw required. Contact finish is 30 µinch gold or GXT™ on the mating face, over phosphor bronze base metal.

This header mates with Mini-PV™ receptacle housings that accept 20-24 AWG crimp terminals. The friction lock engages with the corresponding ramp on the receptacle — confirm the mating part includes the lock feature. The keying slot in the header prevents mis-mating with non-keyed receptacles. The 2-wall shroud provides additional polarization.

Frequently asked questions

Is 78207-120HLF RoHS compliant?

Yes, RoHS compliant per the lifecycle record.

What is the closest pin-compatible alternative to 78207-120HLF in this Pin Headers family?

The 78207-120LF is the same 20-position, right-angle, 0.100" pitch header but with a different plating finish — typically tin instead of gold. The gold plating on the -HLF version provides higher mating cycle durability.
