10-Position Dubox™ Receptacle at 0.100" Pitch
The 10.81 mm mated stack height defines the z-height budget between boards.

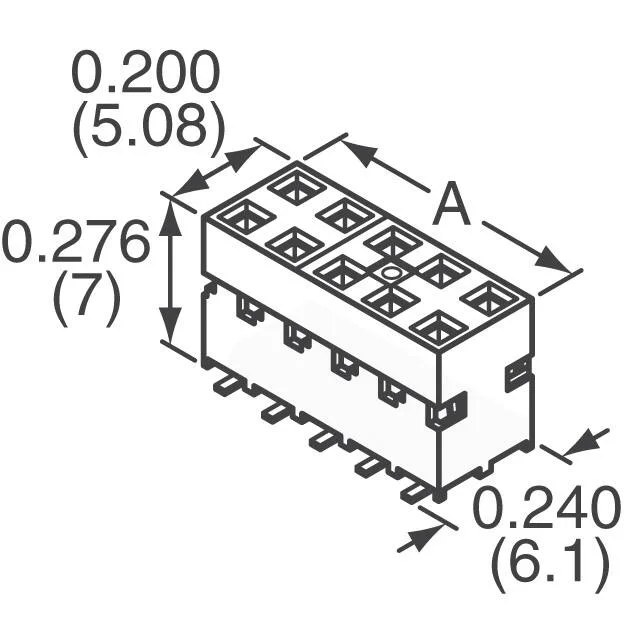

The 0.100" pitch and row spacing match the industry-standard grid, so the footprint aligns with common 0.100" male pin headers. The 10.81 mm mated stack height is fixed — no adjustability, so the mating header's height must match this value to achieve the correct board spacing. The insulation height of 0.275" (6.99 mm) gives clearance under the receptacle for trace routing on the top layer.
The 10-position 89898-305LF sits between the 4-position 89898-302LF and the 24-position 89898-312LF in the same Dubox™ series. For automated assembly, the 89898-305ALF variant offers tape-and-reel packaging with a pick-and-place feature, while the 89898-305LF ships in a box. The electrical and mechanical specs are identical.
