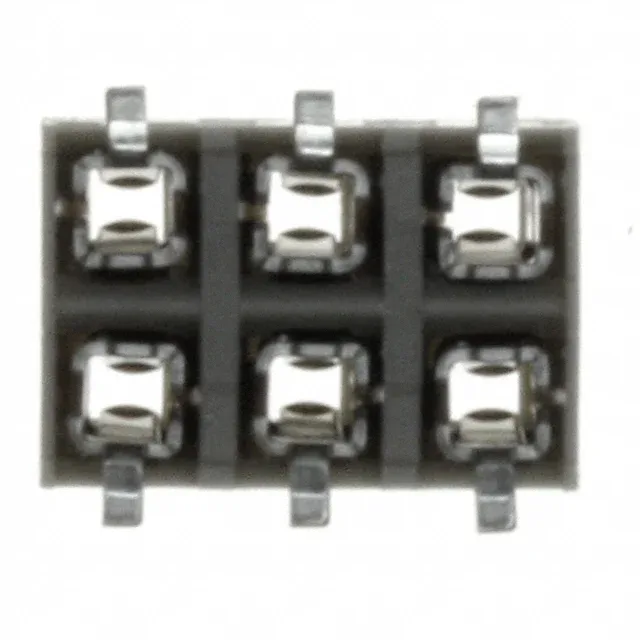

Amphenol ICC (FCI) Dubox™ 89898-303LF, board-to-board female socket receptacle, 6 positions, 0.100" (2.54 mm) pitch, dual-row, SMD, gold-plated mating contacts, 10.81 mm mated stack height, UL94 V-0 gray housing.
| Parameter | Value |
|---|---|
| Series | Dubox™ |
| Type | Female Socket |
| Mounting | Surface Mount |
| Connector type | Receptacle, Bottom or Top Entry |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Gray |
| Insulation height | 0.275\" (6.99mm) |
| Insulation material | Thermoplastic, Glass Filled |
| Mated stacking heights | 10.81mm |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Parameter | Value |
|---|---|
| Package | Box |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 6 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 89898-303LF: Six positions in two rows give three contacts per row, which is a common count for small signal harnesses or low-pin-count mezzanine links.
RoHS compliant per the lifecycle entry, with no exemptions noted.
Yes.
The 89898-302LF has 4 positions; the 89898-303LF has 6 positions. All other specs — pitch, stack height, plating, housing material — are identical.
