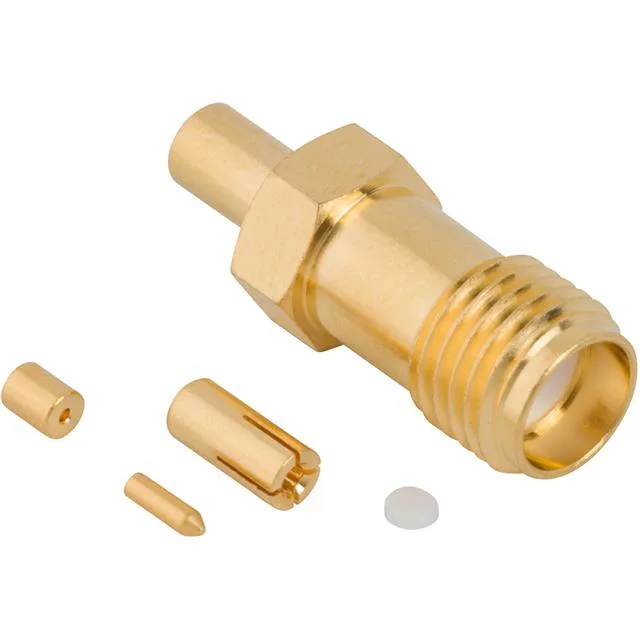

Amphenol RF SMA jack, female socket, 50 Ohm, 6 GHz, 1 port, gold-plated brass body, solder contact and crimp shield termination, free-hanging, for 0.81mm OD coaxial cable.
| Parameter | Value |
|---|---|
| Mounting | Free Hanging (In-Line) |
| Connector type | Jack, Female Socket |
| Fastening type | Threaded |
| Voltage rating | 166 V |
| Frequency - max | 6 GHz |
| Cable group | 0.81mm OD Coaxial Cable |
| Operating temperature | -65°C ~ 165°C |
| Body material | Brass |
| Housing color | Gold |
| Dielectric material | Polytetrafluoroethylene (PTFE) |
| Center contact material | Beryllium Copper |
| Package | Bag |
| Parameter | Value |
|---|---|
| Impedance | 50 Ohms |
| Body finish | Gold |
| Mating cycles | 500 |
| Number of ports | 1 |
| Shield termination | Crimp |
| Contact termination | Solder |
| Center contact plating | Gold |
The Amphenol RF 901-10761 is a standard SMA jack (female socket) connector designed for field-termination on 0.81 mm OD coaxial cable — the same diameter as RG-174/U.
The centre contact is soldered; the shield is crimped.
The gold body finish resists corrosion in humid or salt-spray environments without extra plating.
The 901-10761 is designed for 0.81 mm OD coaxial cable, such as RG-174/U. The centre contact is soldered and the shield is crimped.
The impedance is 50 Ohms, the standard for RF signal paths in test, telecom, and wireless applications.
