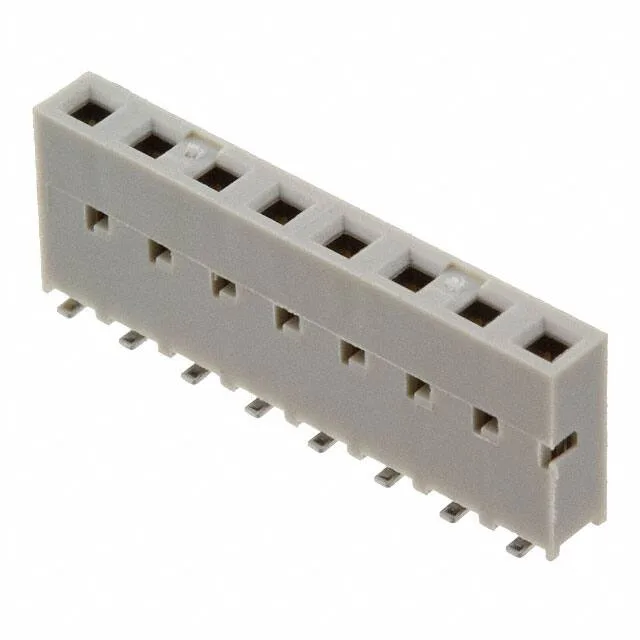

91601-308ALF — Amphenol product photo
Amphenol

91601-308ALF Amphenol ICC Dubox 8-Pos 2.54mm Gold SMD

MPN91601-308ALF
Active

Amphenol ICC (FCI) Dubox™ 91601-308ALF — board-to-board receptacle, 8 positions, single row, 0.100" (2.54 mm) pitch, surface mount, gold mating contacts, 10.81 mm mated stack height, Tape & Reel.

$1.1438Ref. price · indicative, final on quote
91601-308ALF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

91601-308ALF Technical Specifications
ParameterValue
SeriesDubox™
GenderFemale Socket
Mounting typeSurface Mount
Connector typeReceptacle, Bottom or Top Entry
Fastening typePush-Pull
Contact materialPhosphor Bronze
Insulation colorGray
Insulation height0.275\" (6.99mm)
Insulation materialThermoplastic, Glass Filled
Mated stacking heights10.81mm
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageTape & Reel (TR)
FeaturesPick and Place
TerminationSolder
ApplicationsAutomotive, General Purpose, Industrial, Telecommunications
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions8
Contact finish - postTin
Contact finish - matingGold
Contact finish thickness - post78.7µin (2.00µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

8-Position SMT Receptacle for Mezzanine Stacking at 10.81 mm

The push-pull fastening and bottom or top entry orientation give layout flexibility on the board edge or in mid-board positions.

The 91601-308ALF sits between the 6-position 91601-306ALF and the 16-position 91601-316ALF in the same single-row, 0.100" pitch, gold-plated SMT receptacle family. For builds that prefer tube packaging, the 91601-308LF offers the same 8-position, gold-plated receptacle in a Tube format — identical electrical and mechanical specs, just a different carrier for manual or low-volume assembly.

RoHS compliant.

This receptacle accepts square-pin headers on the same 0.100" pitch to achieve the 10.81 mm mated stack height. The pick-and-place feature allows automated placement on the PCB.

Frequently asked questions

Where can I buy 91601-308ALF and how do I get a price?

The 91601-308ALF is active and available through our independent distribution network.

What connector mates with 91601-308ALF?

The push-pull fastening requires no secondary locking hardware.

When sourcing 91601-308ALF, what's the closest functional second-source — 91601-306ALF?

The 91601-306ALF is the 6-position sibling in the same Dubox series, with identical pitch, stack height, plating, and packaging. It is a direct footprint match if the BOM can reduce to 6 circuits.
