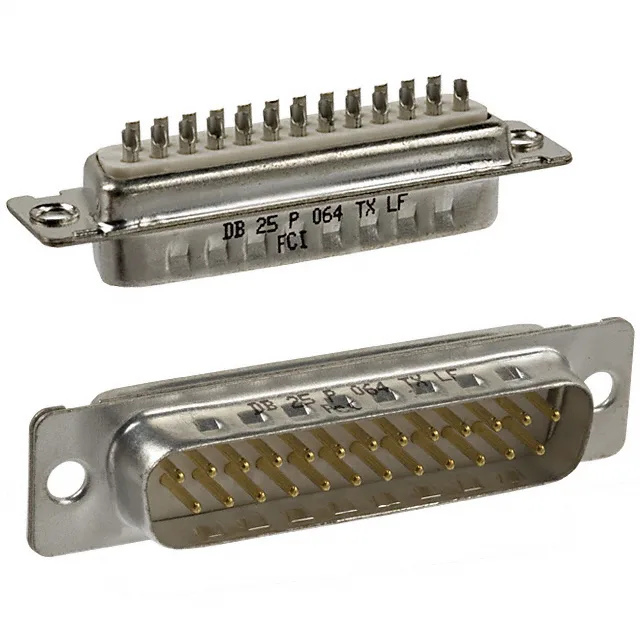

DB25P064TXLF — Amphenol product photo
Amphenol

Amphenol FCI DB25P064TXLF D-Sub Plug, 25 Pos, Solder Cup, 5A

MPNDB25P064TXLF
Active

Amphenol FCI D-Sub, DB25P064TXLF, Plug Male Pins, 25 Positions, 2 Rows, Solder Cup Termination, Free Hanging, Gold Flash Contacts, 5A per Contact, 300V, UL94 V-0.

$1.2900Ref. price · indicative, final on quote
DB25P064TXLF datasheet
StockIn Stock (41)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

DB25P064TXLF Technical Specifications
ParameterValue
SeriesD
GenderSignal
Mounting typeFree Hanging (In-Line)
Connector typePlug, Male Pins
Voltage rating300V
Current rating5A per Contact
Shell size, connector layout3 (DB, B)
Operating temperature-55°C ~ 125°C
ColorNatural
Contact materialCopper Alloy
Dielectric materialThermoplastic
Shell material, finishSteel, Tin Plated
Material flammability ratingUL94 V-0
PackageBulk
FeaturesGrounding Indents
TerminationSolder Cup
Contact finishGold
Flange featureHousing/Shell (Unthreaded)
Rows2
Positions25
Contact finish thicknessFlash

Product details

D-Sub Plug for Cable Assemblies — 25-Position Solder Cup

It terminates via solder cups — each cup accepts a stripped wire end for hand soldering, making this the go-to connector for prototype cable harnesses, field repairs, and low-volume production where a crimp tool is not justified.

The unthreaded housing/shell flange accepts standard D-sub hardware (slide locks or jack screws) for retention; the grounding indents in the shell contact the receptacle face for shield continuity. Solder cup termination: strip the wire, tin the cup, insert the conductor, and solder. No crimp tool needed.

No official cross-reference or second-source is listed beyond the Amphenol FCI series D family. For a shielded variant with the same pinout, the DB25P064HTXLF adds a shielded shell; for thicker gold plating (30.0 µin) on the contacts, the DB25P065TXLF is the upgrade path.

Frequently asked questions

What is the datasheet for DB25P064TXLF?

Essential for design validation and compatibility checking.

Where can I buy DB25P064TXLF?

To find authorized distributors and check stock levels.

What is the price of DB25P064TXLF?

For BOM cost estimation and budgeting.

Is DB25P064TXLF RoHS compliant?

Regulatory compliance required for many applications.

What are cross references for DB25P064TXLF?

To find equivalent parts for multi-sourcing.

What is the lifecycle status of DB25P064TXLF?

Confirms part is active and supports long-term availability.
