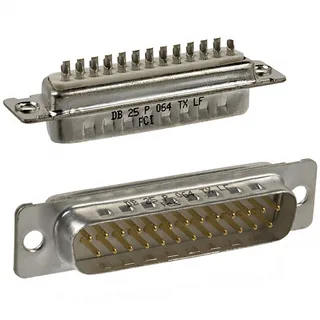

DB25P064TXLF
Amphenol
Free Hanging (In-Line)BulkSolder Cup
Ref. price$1.2900
Lead time on requestGet quote
Amphenol DB25 D Sub Assemblies Series
12 variants · Amphenol
All D-Sub Cable Assemblies by this brand →
Browse D-Sub Cable Assemblies category →
About the Amphenol DB25 D Sub Assemblies Series
IC Source Direct is a China connector distributor, supplier and independent procurement agent for Amphenol DB25 D Sub Assemblies Series components, matching housing, contact and mating cycles across the Shenzhen interconnect channel. The Amphenol DB25 D Sub Assemblies Series series groups 12 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common contact form of -, flange feature of Housing/Shell (Unthreaded) and IP rating of -. Variants differ by backset spacing, color and connector type, so you can match the exact backset spacing your application requires using the selection guide below. All listed Amphenol DB25 D Sub Assemblies Series part numbers are active and orderable.
Select a variant by
- Backset spacing
- - · 0.409\" (10.40mm)
- Color
- - · Natural
- Connector type
- Plug, Male Pins · Receptacle, Female Sockets
- Contact finish
- Gold · Gold, GXT™
- Contact finish thickness
- 30.0µin (0.76µm) · Flash
- Contact material
- Copper Alloy · Phosphor Bronze
- Current rating
- 5A · 5A per Contact
- Dielectric material
- Thermoplastic · Thermoplastic, Glass Filled
Shared specifications
- Contact form
- -
- Flange feature
- Housing/Shell (Unthreaded)
- IP rating
- -
- Positions
- 25
- Rows
- 2
- Shell material, finish
- Steel, Tin Plated
- Shell size, connector layout
- 3 (DB, B)
- Type
- Signal
- Wire gauge
- -
Variant comparison
| Parameter | DB25P064TXLF | DB25P065TXLF | DB25P564CTXLF | DB25S564CTLF | DB25P364TXLF | DB25P564GTXLF |
|---|---|---|---|---|---|---|
| Backset spacing | - | - | 0.409\" (10.40mm) | - | - | 0.409\" (10.40mm) |
| Color | Natural | Natural | - | - | - | - |
| Connector type | Plug, Male Pins | Plug, Male Pins | Plug, Male Pins | Receptacle, Female Sockets | Plug, Male Pins | Plug, Male Pins |
| Contact finish | Gold | Gold, GXT™ | Gold, GXT™ | Gold | Gold, GXT™ | Gold, GXT™ |
| Contact finish thickness | Flash | 30.0µin (0.76µm) | Flash | Flash | Flash | Flash |
| Contact material | Copper Alloy | Copper Alloy | Copper Alloy | Phosphor Bronze | Copper Alloy | Copper Alloy |
| Current rating | 5A per Contact | 5A per Contact | 5A | 5A per Contact | 5A per Contact | 5A per Contact |
| Dielectric material | Thermoplastic | Thermoplastic | Thermoplastic | Thermoplastic, Glass Filled | Thermoplastic | Thermoplastic |
Request a quote on any Amphenol DB25 D Sub Assemblies Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
About Amphenol Amphenol DB25 D Sub Assemblies Series Sourcing
What buyers ask when they search Amphenol DB25 Series Connector Pitch Positions Plating Specifications.
Common questions
- What is the Amphenol DB25 Series used for?
- How do I select the correct part number within the Amphenol DB25 Series series?
- What are the key technical specifications for the Amphenol DB25 Series?
- Where can I find the Amphenol DB25 Series datasheet and order from authorized distributors?
All variants
9 products
DB25P564CTXLF
Amphenol
Through Hole, Right AngleTraySolder
Ref. price$2.7600
Lead time on requestGet quote
DB25P065TXLF
Amphenol
Free Hanging (In-Line)TraySolder Cup
Ref. price$3.3000
Lead time on requestGet quote
DB25S564CTLF
Amphenol
Through Hole, Right AngleTraySolder
Ref. price$2.9000
Lead time on requestGet quote
DB25P364TXLF
Amphenol
Through HoleTraySolder
Ref. price$2.6400
Lead time on requestGet quote
DB25S564GTLF
Amphenol
Through Hole, Right AngleBulkSolder
Ref. price$3.8700
Lead time on requestGet quote
DB25P564GTXLF
Amphenol
Through Hole, Right AngleBulkSolder
Ref. price$3.7600
Lead time on requestGet quote
DB25S064HTLF
Amphenol
Free Hanging (In-Line)TraySolder Cup
Ref. price$1.4400
Lead time on requestGet quote
DB25S064TLF
Amphenol
Free Hanging (In-Line)BulkSolder Cup
Ref. price$1.3000
Lead time on requestGet quote
