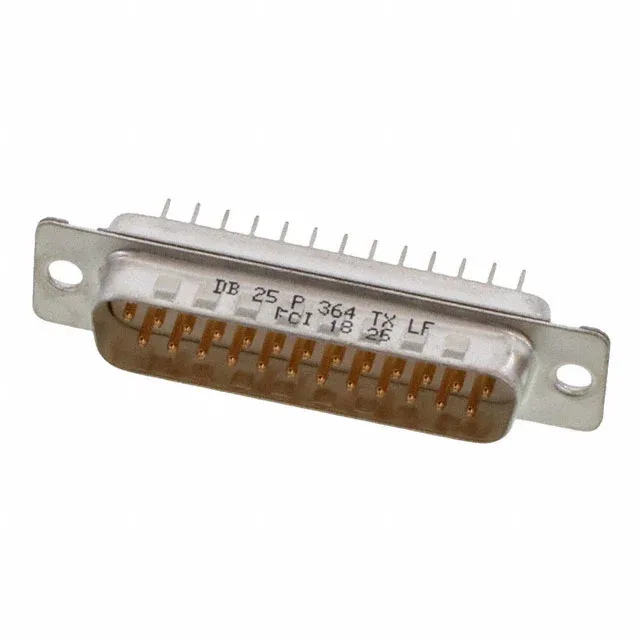

DB25P364TXLF — Amphenol product photo
Amphenol

Amphenol FCI DB25P364TXLF D-Sub Plug, 25-Pos, 5A, Active

MPNDB25P364TXLF
Active

Amphenol FCI D-Sub, DB25P364TXLF, Plug Male Pins, 25 Positions, 2 Rows, Through Hole Solder, 5A per Contact, 300V, Gold GXT Flash, UL94 V-0, Tray

$2.6400Ref. price · indicative, final on quote
DB25P364TXLF datasheet
StockIn Stock (30)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

DB25P364TXLF Technical Specifications
ParameterValue
SeriesD
GenderSignal
Mounting typeThrough Hole
Connector typePlug, Male Pins
Voltage rating300V
Current rating5A per Contact
Shell size, connector layout3 (DB, B)
Operating temperature-55°C~125°C
Contact materialCopper Alloy
Dielectric materialThermoplastic
Shell material, finishSteel, Tin Plated
Material flammability ratingUL94 V-0
PackageTray
FeaturesGrounding Indents
TerminationSolder
Contact finishGold, GXT™
Flange featureHousing/Shell (Unthreaded)
Rows2
Positions25
Contact finish thicknessFlash

Product details

What Is the DB25P364TXLF?

The Amphenol FCI DB25P364TXLF is a 25-position D-Sub plug with male pins, part of the D series. It uses a standard DB-25 shell layout (shell size 3, DB, B) and mates with any standard 25-position D-Sub receptacle.

The DB25P364TXLF is a vertical through-hole plug. Its closest same-series peer is the DB25P564CTXLF, which is a right-angle through-hole plug with the same 25 positions, same DB-25 shell size, same 5 A rating, and same gold GXT™ flash plating. The only decision-relevant difference is orientation: vertical vs right-angle. Both are active and tray-packaged.

Termination is solder — through-hole mounting for a vertical plug. The flange feature is housing/shell with unthreaded holes, meaning the connector is designed for board-to-cable mating where the receptacle side typically carries the threaded hardware. The shell is steel with tin plating, providing basic EMI shielding.

Frequently asked questions

Is DB25P364TXLF RoHS compliant?

Yes, the DB25P364TXLF is listed as RoHS compliant.

Does DB25P364TXLF come with grounding indents?

Yes, the DB25P364TXLF includes grounding indents on the shell, which mate with the receptacle face to bleed shield current before it reaches the signal pins.

What is the equivalent part for DB25P364TXLF?

No official equivalent or second-source cross-reference is listed beyond the Amphenol FCI D series. The closest functional alternative within the same series is the right-angle DB25P564CTXLF, which shares the same 25 positions, shell size, current rating, and contact plating — only the orientation differs.
