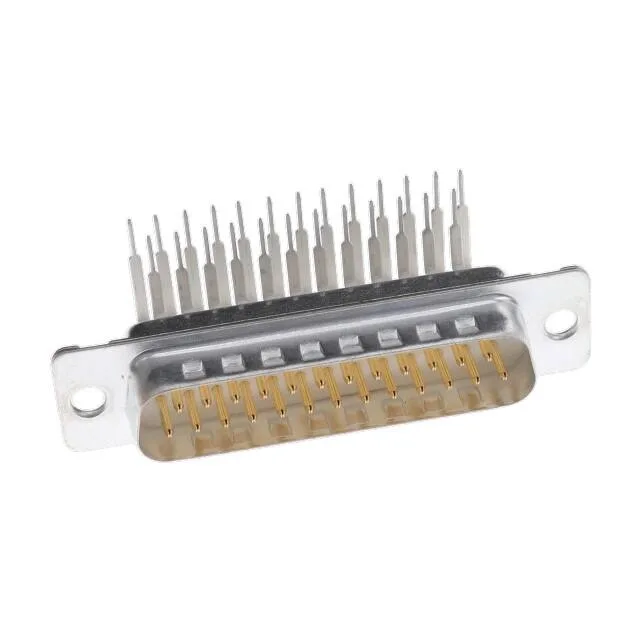

DB25P564CTXLF — Amphenol product photo
Amphenol

Amphenol FCI DB25P564CTXLF D-Sub Plug, 25 Pos, R/A, 5 A

MPNDB25P564CTXLF
Active

Amphenol FCI D-sub, DB25P564CTXLF, 25-position plug, male pins, right-angle through-hole, solder termination, 5 A, gold GXT contact finish, steel shell with tin plating, grounding indents, UL94 V-0.

$2.7600Ref. price · indicative, final on quote
DB25P564CTXLF datasheet
StockIn Stock (30)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

DB25P564CTXLF Technical Specifications
ParameterValue
SeriesD
GenderSignal
Mounting typeThrough Hole, Right Angle
Connector typePlug, Male Pins
Current rating5A
Shell size, connector layout3 (DB, B)
Operating temperature-55°C~125°C
Contact materialCopper Alloy
Dielectric materialThermoplastic
Shell material, finishSteel, Tin Plated
Material flammability ratingUL94 V-0
PackageTray
FeaturesGrounding Indents
TerminationSolder
Contact finishGold, GXT™
Flange featureHousing/Shell (Unthreaded)
Rows2
Backset spacing0.409\" (10.40mm)
Positions25
Contact finish thicknessFlash

Product details

The Amphenol FCI DB25P564CTXLF is a 25-position D-sub plug (male pins) in the standard DB-25 shell size — layout 3 (DB, B).

Right-angle through-hole mounting means the solder tails exit the bottom of the insulator and bend 90 degrees to align with the PCB holes. The backset spacing is 0.409" (10.40 mm) — the distance from the mounting face to the first row of pins — which sets the board-edge clearance. The flange feature is housing/shell (unthreaded), so the connector uses the standard D-sub footprint with 4-40 threaded inserts on the mating half or backshell, not on the plug itself.

How It Compares: DB25P564GTXLF

The difference is packaging and features: the DB25P564CTXLF ships in tray and includes grounding indents; the DB25P564GTXLF ships in bulk and adds board locks for extra PCB retention during wave solder. If your assembly needs the mechanical anchor of board locks, the GTXLF variant is the one to specify. Otherwise, the CTXLF covers the same signal path at the same footprint.

Frequently asked questions

Where can I buy DB25P564CTXLF?

Submit a request for quote to confirm current availability and pricing for your required quantity.

Is DB25P564CTXLF RoHS compliant?

Yes, DB25P564CTXLF is RoHS compliant.

What is the equivalent or alternative for DB25P564CTXLF?

The closest functional alternative is DB25P564GTXLF, which adds board locks and ships in bulk instead of tray. Both are 25-position right-angle D-sub plugs with the same footprint and 5 A gold GXT contacts.

Is DB25P564CTXLF compatible with standard D-sub backshells?

Yes, the DB25P564CTXLF uses the standard DB-25 shell size (layout 3) and an unthreaded flange, so it accepts standard 25-position D-sub backshells with 4-40 jackscrew hardware on the mating side.

What is the screw size for DB25P564CTXLF flange?

The flange feature is housing/shell (unthreaded), so the plug itself does not have threaded screw inserts. The mating receptacle or backshell provides the 4-40 threaded hardware.
