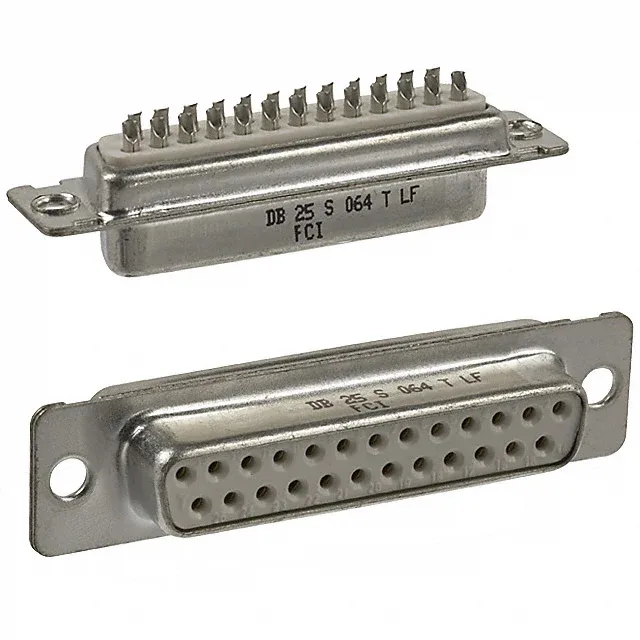

DB25S064TLF — Amphenol product photo
Amphenol

Amphenol FCI DB25S064TLF D-Sub Receptacle, 25 Pos

MPNDB25S064TLF
Active

Amphenol FCI D-series D-sub receptacle, 25 positions, 2 rows, solder cup termination, gold flash contacts, 5A per contact, 300V, free hanging, UL94 V-0, Natural.

$1.3000Ref. price · indicative, final on quote
DB25S064TLF datasheet
StockIn Stock (50)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

DB25S064TLF Technical Specifications
ParameterValue
SeriesD
GenderSignal
Mounting typeFree Hanging (In-Line)
Connector typeReceptacle, Female Sockets
Voltage rating300V
Current rating5A per Contact
Shell size, connector layout3 (DB, B)
Operating temperature-55°C~125°C
ColorNatural
Contact materialCopper Alloy
Dielectric materialThermoplastic
Shell material, finishSteel, Tin Plated
Material flammability ratingUL94 V-0
PackageBulk
TerminationSolder Cup
Contact finishGold
Flange featureHousing/Shell (Unthreaded)
Rows2
Positions25
Contact finish thicknessFlash

Product details

The Amphenol FCI DB25S064TLF is a standard DB25 female receptacle — 25 positions in two rows, shell size 3 (DB, B), with a free-hanging (in-line) mount and solder cup termination. It mates with the matching DB25 male plug (solder cup or crimp) to form a reliable signal interconnect for serial data, parallel I/O, and industrial control wiring.

Solder cup termination — you strip the wire, tin it, and solder directly into the cup. No crimp tool needed, which makes field re-pinning straightforward with a basic soldering iron.

Frequently asked questions

Where can I buy DB25S064TLF?

Submit a request for quote to confirm current availability and pricing.

What is the mating connector for DB25S064TLF?

DB25S064TLF mates with a standard DB25 male plug (solder cup or crimp style) from the same D-sub series. The shell size is 3 (DB, B) and the flange is unthreaded, so use jackscrews or slide locks for retention.
