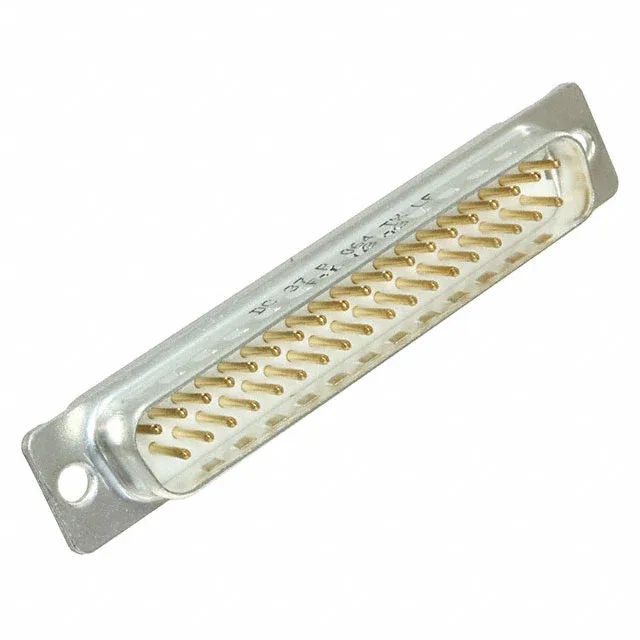

DC37P064HTXLF — Amphenol product photo
Amphenol

Amphenol FCI DC37P064HTXLF D-Sub Plug, 37 Pos, Solder Cup

MPNDC37P064HTXLF
Active

Amphenol FCI D-Sub, DC37P064HTXLF, Plug Male Pins, 37 Positions, 2 Rows, Solder Cup, Free Hanging, 5A per Contact, 300V, Gold Flash, Shielded, UL94 V-0.

$2.3100Ref. price · indicative, final on quote
DC37P064HTXLF datasheet
StockIn Stock (31)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

DC37P064HTXLF Technical Specifications
ParameterValue
SeriesD
GenderSignal
Mounting typeFree Hanging (In-Line)
Connector typePlug, Male Pins
Voltage rating300V
Current rating5A per Contact
Shell size, connector layout4 (DC, C)
Operating temperature-55°C~125°C
ColorNatural
Contact materialCopper Alloy
Dielectric materialThermoplastic
Shell material, finishSteel, Tin Plated
Material flammability ratingUL94 V-0
PackageTray
FeaturesGrounding Indents, Shielded
TerminationSolder Cup
Contact finishGold
Flange featureHousing/Shell (Unthreaded)
Rows2
Positions37
Contact finish thicknessFlash

Product details

Standard-Density 37-Position D-Sub with Solder-Cup Termination

The Amphenol FCI DC37P064HTXLF is a 37-position, 2-row D-sub plug with male pins, terminated via solder cups for free-hanging (in-line) cable assemblies.

Shielding and Grounding Indents

In a mated pair, the indents contact the receptacle shell, maintaining shield continuity across the interface. This matters in electrically noisy environments — PLC cabinets, motor drives, or data acquisition racks — where conducted EMI on the cable shield needs a clean drain to chassis ground.

Solder Cup Termination — Field Wiring

Solder-cup termination allows direct soldering of individual wires without a crimp tool. The free-hanging mounting style terminates a cable assembly that plugs into a panel-mount or PCB-mount D-sub receptacle.

Frequently asked questions

Is DC37P064HTXLF shielded?

Yes, the DC37P064HTXLF includes a tin-plated steel shell with grounding indents for EMI/RFI shielding.

What is the replacement for DC37P064HTXLF?

The DC37P064TXLF (unshielded) and DC37P065HTXLF (30 µin gold/GXT™ finish, shielded) are functional peers but differ in contact finish thickness and shielding — confirm fit before substituting.
