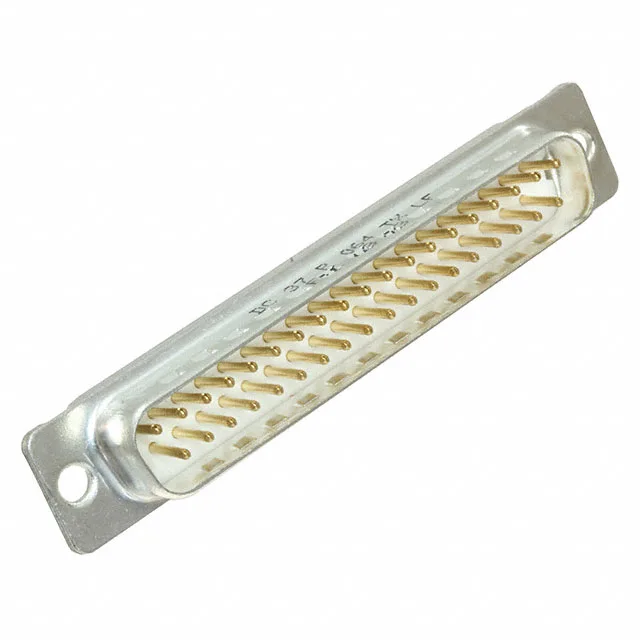

DC37P064TXLF — Amphenol product photo
Amphenol

Amphenol DC37P064TXLF D-Sub Plug, 37-Pin Solder Cup, 5A

MPNDC37P064TXLF
Active

Amphenol D series D-Sub, Plug, Male Pins, 37 Positions, 2 Rows, Solder Cup, 5A per Contact, 300V, Free Hanging, Gold Flash, Natural Thermoplastic, UL94 V-0.

$2.2400Ref. price · indicative, final on quote
DC37P064TXLF datasheet
StockIn Stock (29)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

DC37P064TXLF Technical Specifications
ParameterValue
SeriesD
GenderSignal
Mounting typeFree Hanging (In-Line)
Connector typePlug, Male Pins
Voltage rating300V
Current rating5A per Contact
Shell size, connector layout4 (DC, C)
Operating temperature-55°C ~ 125°C
ColorNatural
Contact materialCopper Alloy
Dielectric materialThermoplastic
Shell material, finishSteel, Tin Plated
Material flammability ratingUL94 V-0
PackageTray
FeaturesGrounding Indents
TerminationSolder Cup
Contact finishGold
Flange featureHousing/Shell (Unthreaded)
Rows2
Positions37
Contact finish thicknessFlash

Product details

37-Pin D-Sub Plug for Cable Harness Assembly

The Amphenol DC37P064TXLF is a standard-density D-sub plug with 37 male pins arranged in two rows, terminated via solder cups for field or bench cable assembly. The shell is steel with a tin plating, and the housing is a natural thermoplastic rated UL94 V-0.

Solder Cup Termination and Free-Hanging Mount

Termination is solder cup — each pin has a cup that accepts tinned stranded wire, soldered in place. The flange feature is housing/shell with unthreaded holes.

Frequently asked questions

Is DC37P064TXLF RoHS compliant?

Yes, DC37P064TXLF is listed as RoHS Compliant.
