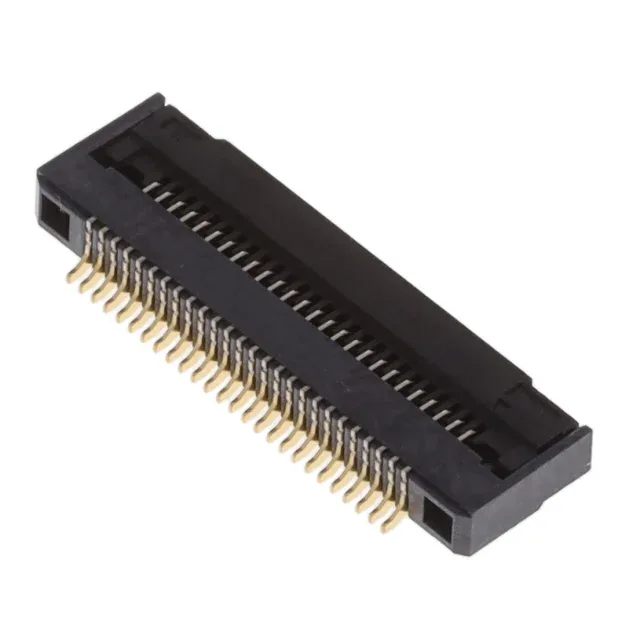

F300-1B7H1-11026-E100 Amphenol ICC FFC/FPC Connector

MPNF300-1B7H1-11026-E100
Active

Amphenol ICC (FCI) Aorora F300 FFC/FPC connector, 26 positions, 0.50mm pitch, right-angle SMT, ZIF flip lock, gold-plated bottom contacts, 0.5A per contact, 50V rating, UL94 V-0 LCP housing, active production.

$0.8300Ref. price · indicative, final on quote
F300-1B7H1-11026-E100 datasheet
StockContact for availability
Lead time3-5 Days wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

F300-1B7H1-11026-E100 Technical Specifications
ParameterValue
SeriesAorora F300
Mounting typeSurface Mount, Right Angle
Cable end typeNotched
Flat flex typeFFC, FPC
Connector (Contact type)Contacts, Bottom
Voltage rating50V
Current rating0.5A
Operating temperature-40°C~105°C
Housing colorBlack
Actuator colorBlack
Contact materialPhosphor Bronze
Housing materialLiquid Crystal Polymer (LCP)
Actuator materialPolyamide (PA9T), Nylon 9T, Halogen Free
Height above board0.079\" (2.00mm)
Material flammability ratingUL94 V-0
Pitch0.020\" (0.50mm)
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesSolder Retention, Zero Insertion Force (ZIF)
TerminationSolder
Mating cycles30
Contact finishGold
Locking featureFlip Lock
FFC, FCB thickness0.12mm
Positions26
Contact finish thickness1.97µin (0.050µm)

Product details

0.50mm Pitch Right-Angle ZIF FFC/FPC Connector

The F300-1B7H1-11026-E100 is a 26-position FFC/FPC connector from Amphenol ICC's Aorora F300 series, built on a 0.50mm pitch with a right-angle surface-mount footprint. The ZIF (zero insertion force) flip lock secures the FPC without stressing the pads, and the bottom-contact design mates with standard 0.12mm-thick FPC cables. Gold-plated phosphor bronze contacts carry 0.5A per circuit at 50V, with a 30-mating-cycle endurance that suits internal board-to-FPC links in displays, touch panels, and sensor modules.

Position Count and Pitch for BOM Fit

At 26 positions, this connector sits between the 20-position (F300-1B7H1-11020-E100) and 30-position (F300-1B7H1-11030-E100) siblings in the same Aorora F300 family, sharing identical pitch, height, contact finish, and ZIF flip-lock mechanism.

Board Layout and Mating Checklist

The flip lock actuator is black polyamide (PA9T, halogen-free), matching the black LCP housing. The FPC cable end must be notched per the connector's keying to engage the ZIF mechanism fully. Contact finish thickness is 1.97µinch (0.050µm) gold over nickel — a flash plating that supports the 30-cycle rating but is not intended for repeated field-service disconnection.

Frequently asked questions

What is the pitch and position count of F300-1B7H1-11026-E100?

This connector has a 0.50mm pitch with 26 positions, a right-angle SMT footprint, and a ZIF flip-lock actuator. It mates with 0.12mm-thick notched FPC cables.

Can F300-1B7H1-11026-E100 replace a different position-count variant in the same series?

No — the 26-position version has a unique circuit count. The 20-, 30-, and 32-position siblings (F300-1B7H1-11020-E100, F300-1B7H1-11030-E100, F300-1B7H1-11032-E100) share the same pitch, height, and contact finish but require a different board layout for the pad pattern.
