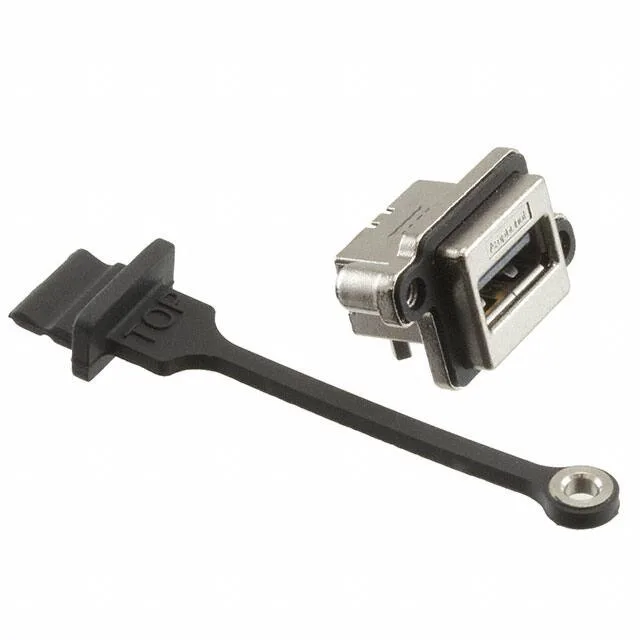

Amphenol ICC MUSB series USB-A (USB TYPE-A) receptacle, order code MUSBA111M5, 4 contacts, USB 2.0, IP67, gold-plated contacts, panel mount through-hole right-angle, solder termination.
| Parameter | Value |
|---|---|
| Series | MUSB |
| Mounting | Panel Mount, Through Hole, Right Angle |
| Connector type | USB-A (USB TYPE-A) |
| Current rating | 1.5A |
| Positions | 4 |
| IP rating | IP67 - Dust Tight, Waterproof |
| Mounting feature | Flange, Horizontal |
| Operating temperature | -40°C~105°C |
| Insulation color | Black |
| Shell (Shielding material) | Copper Alloy |
| Material flammability rating | UL94 V-0 |
| Gender | Receptacle |
| Parameter | Value |
|---|---|
| Package | Box |
| Features | Cover |
| Shielding | Shielded |
| Termination | Solder |
| Mating cycles | 1500 |
| Contact finish | Gold |
| Specifications | USB 2.0 |
| Number of ports | 1 |
The MUSBA111M5 is the 4-contact USB-A receptacle in Amphenol ICC's MUSB series, specified for USB 2.0 and sealed to IP67 when mated.
The IP67 rating means the receptacle holds dust-tight and waterproof protection at the panel face — the flange and cover keep the seal intact when unmated. 1500 mating cycles with gold contacts support field-service reconnect duty in industrial or outdoor enclosures.
