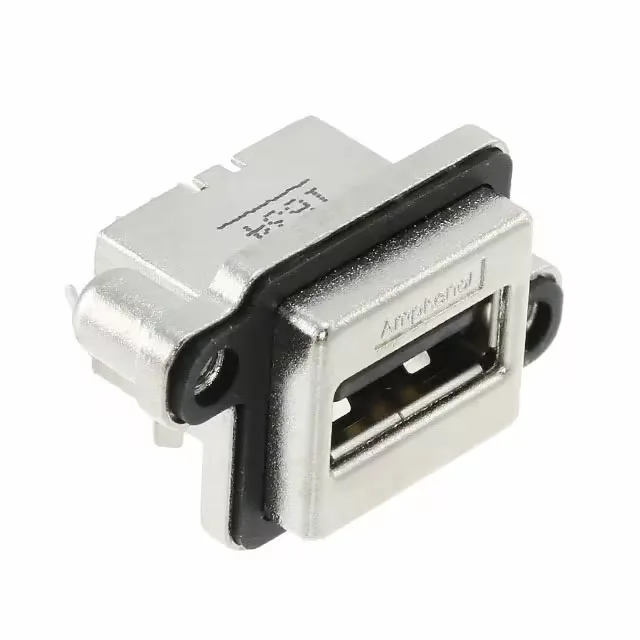

Amphenol ICC MUSB series USB-A receptacle, order code MUSBA511N0, 4 contacts, USB 2.0, IP67, gold-plated contacts, shielded, panel mount through-hole, solder termination.
| Parameter | Value |
|---|---|
| Series | MUSB |
| Mounting | Panel Mount, Through Hole |
| Connector type | USB-A (USB TYPE-A) |
| Current rating | 1.5A |
| Positions | 4 |
| IP rating | IP67 - Dust Tight, Waterproof |
| Mounting feature | Flange, Vertical |
| Operating temperature | -40°C~105°C |
| Insulation color | Black |
| Shell (Shielding material) | Copper Alloy |
| Material flammability rating | UL94 V-0 |
| Gender | Receptacle |
| Parameter | Value |
|---|---|
| Package | Box |
| Features | Board Lock |
| Shielding | Shielded |
| Termination | Solder |
| Mating cycles | 1500 |
| Contact finish | Gold |
| Specifications | USB 2.0 |
| Number of ports | 1 |
The MUSBA511N0 is the 4-contact, single-port USB-A receptacle in Amphenol ICC's MUSB series, rated USB 2.0 and sealed to IP67 when mated. Gold-plated contacts are rated 1.5 A per circuit; the shielded shell and board lock suit panel-mount applications where vibration and moisture ingress are concerns.
IP67 — dust tight and waterproof when mated with the corresponding plug.
1500 mating cycles, supported by gold-plated contacts.
