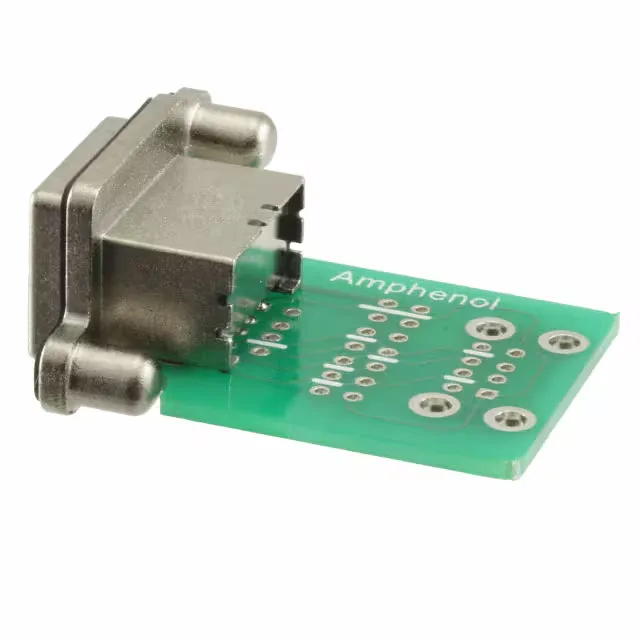

Amphenol ICC MUSB series USB-A receptacle, order code MUSBAA1130, 4 contacts, USB 2.0, 1.5 A, shielded, gold-plated contacts, panel mount with flange, horizontal orientation, solder termination.
| Parameter | Value |
|---|---|
| Series | MUSB |
| Mounting | Panel Mount |
| Connector type | USB-A (USB TYPE-A) |
| Current rating | 1.5A |
| Positions | 4 |
| IP rating | IP67 - Dust Tight, Waterproof |
| Mounting feature | Flange, Horizontal |
| Operating temperature | -40°C ~ 105°C |
| Insulation color | Black |
| Shell (Shielding material) | Copper Alloy |
| Material flammability rating | UL94 V-0 |
| Gender | Receptacle |
| Parameter | Value |
|---|---|
| Package | Box |
| Shielding | Shielded |
| Termination | PC Board, Solder |
| Mating cycles | 1500 |
| Contact finish | Gold |
| Specifications | USB 2.0 |
| Number of ports | 1 |
The MUSBAA1130 is a 4-contact USB 2.0 Type-A receptacle from Amphenol ICC's MUSB series, rated IP67 when mated — the flange gasket and shell seal keep the interface dust-tight and protected against water ingress.
The MUSBAA1130 is an active-production part. Availability and pricing are confirmed at RFQ for the required quantity.
The MUSBAA1130 is RoHS compliant.
The MUSBAA1130 is a USB Type-A receptacle; it mates with a standard USB Type-A plug. The IP67 rating is achieved when mated with a corresponding sealed plug.
