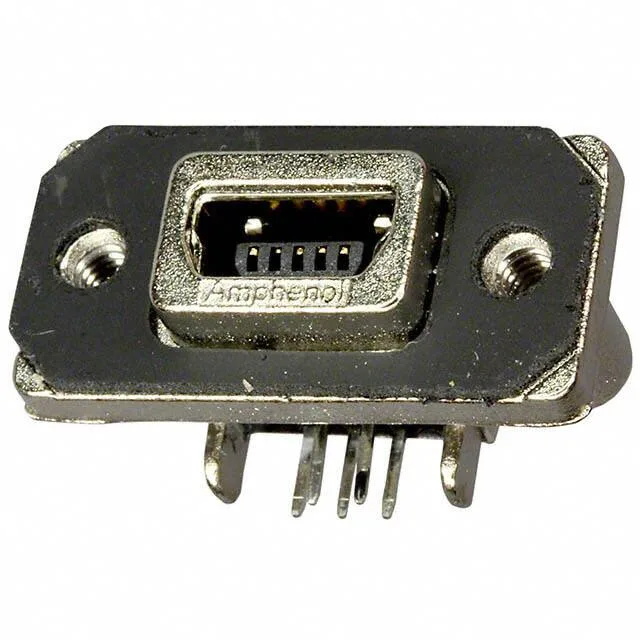

MUSBB15134 — Amphenol product photo
Amphenol

MUSBB15134 Amphenol ICC USB mini-B Receptacle, IP67, 1A

MPNMUSBB15134
Active

Amphenol ICC MUSB series USB 2.0 mini-B receptacle, order code MUSBB15134, 5 contacts, 1 A, IP67 sealed, gold-plated contacts, panel mount through-hole right-angle, solder termination.

$12.3300Ref. price · indicative, final on quote
MUSBB15134 datasheet
StockIn Stock (27)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

MUSBB15134 Technical Specifications
ParameterValue
SeriesMUSB
Mounting typePanel Mount, Through Hole, Right Angle
Connector typeUSB - mini B
Current rating1A
Positions5
Ingress protectionIP67 - Dust Tight, Waterproof
Mounting featureFlange, Horizontal
Operating temperature-40°C~105°C
Insulation colorBlack
Shell (Shielding material)Copper Alloy
Material flammability ratingUL94 V-0
GenderReceptacle
PackageTray
ShieldingShielded
TerminationSolder
Mating cycles5000
Contact finishGold
SpecificationsUSB 2.0
Number of ports1

Product details

IP67 USB 2.0 mini-B for sealed panel entry

The MUSBB15134 is the 5-contact USB 2.0 mini-B receptacle in Amphenol ICC's MUSB series, rated IP67 when mated — the flange and O-ring seal at the panel face keep the contacts dry in washdown or outdoor service. Gold-plated contacts rated 1 A per circuit, with 5000 mating cycles — the plating grade supports repeated connect-disconnect cycles in field-access panels.

The 5000-cycle rating on the gold-plated contacts means this connector handles frequent mating without the contact resistance drift seen on tin-plated USB connectors over the same cycle count.

Frequently asked questions

What is the closest pin-compatible alternative to MUSBB15134 in the MUSB series?

No same-series pin-compatible alternative is listed — the MUSB series includes variants with different mounting and shielding options, but the MUSBB15134 is the only IP67-rated USB 2.0 mini-B receptacle with a right-angle panel-mount flange in the series.
