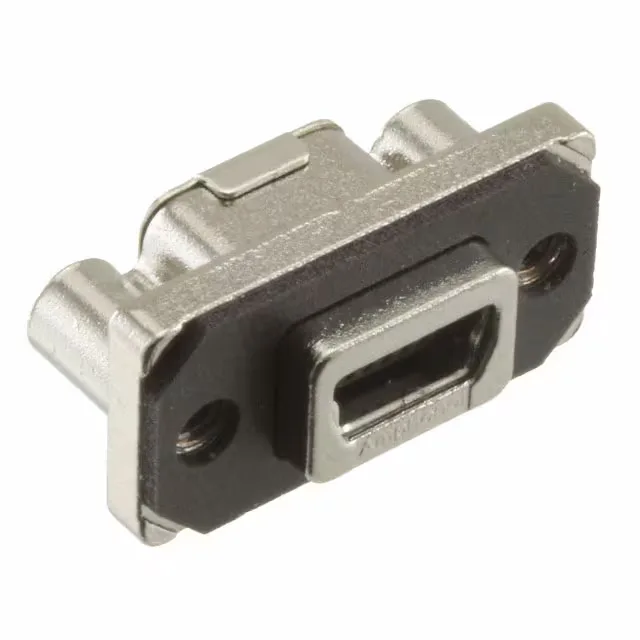

Amphenol ICC MUSB series USB 2.0 mini-B receptacle, order code MUSBB151M0, 5 contacts, 1 A, shielded, gold-plated contacts, panel mount through-hole right-angle, solder termination, IP67.
| Parameter | Value |
|---|---|
| Series | MUSB |
| Mounting | Panel Mount, Through Hole, Right Angle |
| Connector type | USB - mini B |
| Current rating | 1A |
| Positions | 5 |
| IP rating | IP67 - Dust Tight, Waterproof |
| Mounting feature | Flange, Horizontal |
| Operating temperature | -40°C~105°C |
| Insulation color | Black |
| Shell (Shielding material) | Copper Alloy |
| Material flammability rating | UL94 V-0 |
| Gender | Receptacle |
| Parameter | Value |
|---|---|
| Package | Box |
| Shielding | Shielded |
| Termination | Solder |
| Mating cycles | 5000 |
| Contact finish | Gold |
| Specifications | USB 2.0 |
| Number of ports | 1 |
The MUSBB151M0 is a 5-contact USB 2.0 mini-B receptacle from Amphenol ICC's MUSB series, shielded and sealed to IP67 when mated with the corresponding plug. Gold-plated contacts are rated 1 A and survive 5000 mating cycles — the plating and seal suit field-service connections in industrial enclosures where the connector sees repeated mate-unmate cycles and occasional washdown.
The MUSBB151M0 is rated for 5000 mating cycles, supported by the gold-plated contacts.
