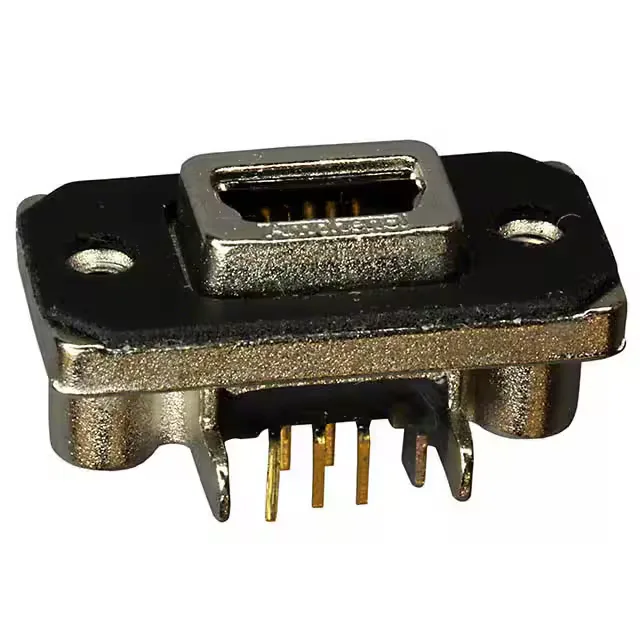

MUSBB55104 — Amphenol product photo
Amphenol

MUSBB55104 Amphenol ICC USB 2.0 Mini-B Receptacle, IP67

MPNMUSBB55104
Active

Amphenol ICC MUSB series USB 2.0 mini-B receptacle, order code MUSBB55104, 5 contacts, 1 A, IP67 when mated, shielded, gold-plated contacts, panel mount through-hole, solder termination.

$14.2000Ref. price · indicative, final on quote
MUSBB55104 datasheet
StockIn Stock (19)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

MUSBB55104 Technical Specifications
ParameterValue
SeriesMUSB
Mounting typePanel Mount, Through Hole
Connector typeUSB - mini B
Current rating1A
Positions5
Ingress protectionIP67 - Dust Tight, Waterproof
Mounting featureFlange, Vertical
Operating temperature-40°C~105°C
Insulation colorBlack
Shell (Shielding material)Copper Alloy
Material flammability ratingUL94 V-0
GenderReceptacle
PackageTray
ShieldingShielded
TerminationSolder
Mating cycles5000
Contact finishGold
SpecificationsUSB 2.0
Number of ports1

Product details

Sealed USB 2.0 mini-B, 5 contacts

The MUSBB55104 is a 5-contact USB 2.0 mini-B receptacle from the Amphenol ICC MUSB series, rated IP67 — but that rating holds only when the connector is mated with the corresponding plug. It carries gold-plated contacts rated for 1 A and 5000 mating cycles, with a shielded copper-alloy shell and a UL94 V-0 black insulation body.

IP67 only when mated

The IP67 rating is valid only when the receptacle is mated — the flange gasket seals against the panel face, but an unmated half exposes the contacts to washdown and dust.

Frequently asked questions

Where can I buy MUSBB55104 and how do I get a price?

The MUSBB55104 is available to order. Request a quote for current pricing and lead time.
