IP67 sealed mini-B receptacle for harsh environments

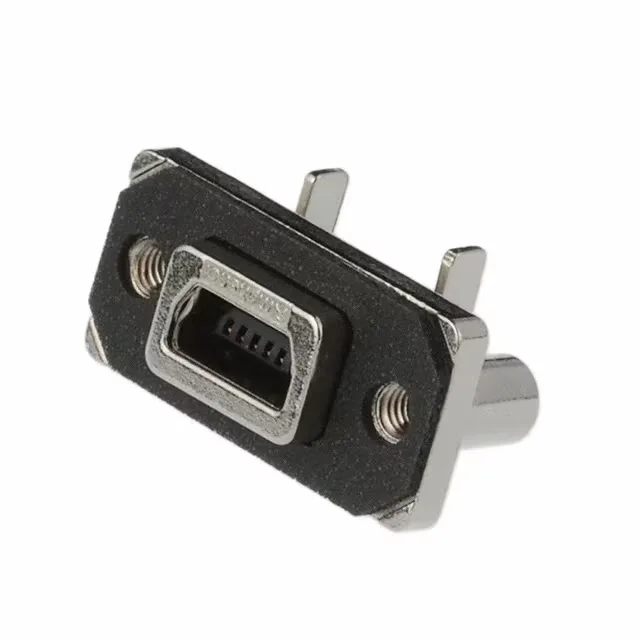

The MUSBB551N4 is a 5-contact USB 2.0 mini-B receptacle from the Amphenol ICC MUSB series, rated IP67 when mated — the flange gasket and shell seal keep dust and water out of the panel opening.
Amphenol ICC MUSB series USB 2.0 mini-B receptacle, order code MUSBB551N4, 5 contacts, 1 A, IP67, shielded, panel mount through-hole, vertical flange, solder termination, gold-plated contacts.
$15.53Ref. price · indicative, final on quote
StockIn Stock (23)
Lead timeIn Stock wk
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | MUSB |
| Mounting type | Panel Mount, Through Hole |
| Connector type | USB - mini B |
| Current rating | 1A |
| Positions | 5 |
| Ingress protection | IP67 - Dust Tight, Waterproof |
| Mounting feature | Flange, Vertical |
| Operating temperature | -40°C ~ 105°C |
| Insulation color | Black |
| Shell (Shielding material) | Copper Alloy |
| Material flammability rating | UL94 V-0 |
| Gender | Receptacle |
| Package | Box |
| Shielding | Shielded |
| Termination | Solder |
| Mating cycles | 5000 |
| Contact finish | Gold |
| Specifications | USB 2.0 |
| Number of ports | 1 |
Product details
Frequently asked questions
What is the IP rating of the MUSBB551N4?
The MUSBB551N4 is rated IP67 — dust-tight and waterproof — but only when mated with the corresponding plug. The flange gasket seals the panel opening.
