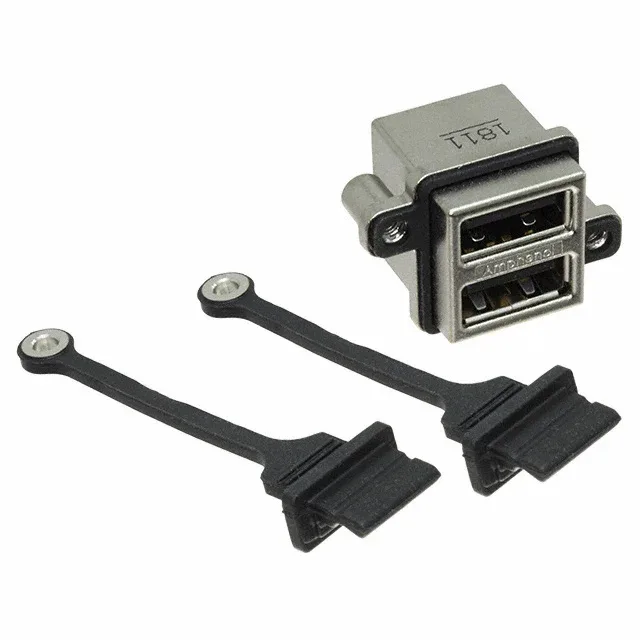

MUSBC111M5 — Amphenol product photo
Amphenol

Amphenol MUSBC111M5 USB-A Stacked Receptacle, IP67

MPNMUSBC111M5
Active

Amphenol ICC (Commercial Products) MUSB series USB-A (USB TYPE-A) stacked receptacle, order code MUSBC111M5, 8 contacts, 2 ports, 1.5 A, IP67, shielded, panel mount through-hole right-angle, solder termination, gold contact finish.

$14.3700Ref. price · indicative, final on quote
MUSBC111M5 datasheet
StockIn Stock (14)
Lead time3-5 Days wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

MUSBC111M5 Technical Specifications
ParameterValue
SeriesMUSB
Mounting typePanel Mount, Through Hole, Right Angle
Connector typeUSB-A (USB TYPE-A), Stacked
Current rating1.5A
Positions8
Ingress protectionIP67 - Dust Tight, Waterproof
Mounting featureFlange, Horizontal
Operating temperature-40°C~105°C
Insulation colorBlack
Shell (Shielding material)Copper Alloy
Material flammability ratingUL94 V-0
GenderReceptacle
PackageBox
FeaturesCover
ShieldingShielded
TerminationSolder
Mating cycles1500
Contact finishGold
SpecificationsUSB 2.0
Number of ports2

Product details

Panel-mount sealed USB-A with two ports

The MUSBC111M5 is a stacked USB-A receptacle from Amphenol ICC's MUSB series, offering two ports in a single panel-mount housing with IP67 sealing when mated. It carries 8 contacts (4 per port) with gold finish, rated 1.5 A per contact, and is shielded with a copper alloy shell. The through-hole right-angle termination and flange mount with horizontal orientation suit panel installations requiring a sealed data interface.

Mating cycles and environmental range

Rated for 1500 mating cycles, the gold-plated contacts support repeated field connections without fretting.
