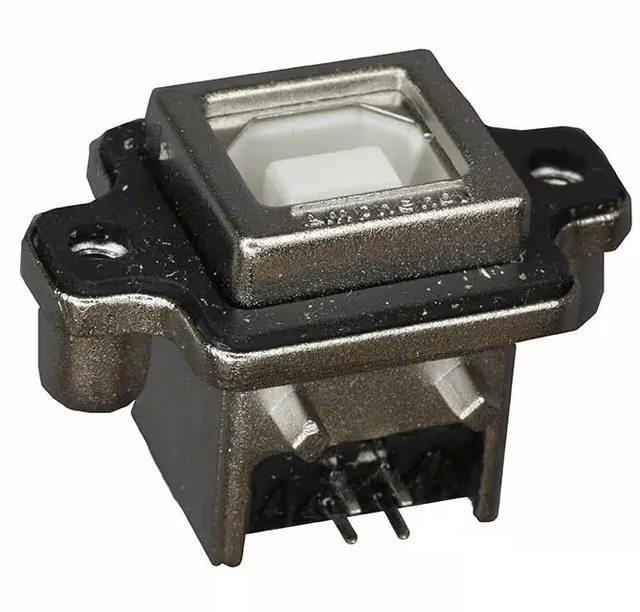

Amphenol ICC MUSB series USB-B receptacle, order code MUSBD11130, 4 contacts, USB 2.0, 1.5 A, gold-plated contacts, panel mount through-hole right-angle, solder termination, IP67 sealed.
| Parameter | Value |
|---|---|
| Series | MUSB |
| Mounting | Panel Mount, Through Hole, Right Angle |
| Connector type | USB-B (USB TYPE-B) |
| Current rating | 1.5A |
| Positions | 4 |
| IP rating | IP67 - Dust Tight, Waterproof |
| Mounting feature | Flange, Horizontal |
| Operating temperature | -40°C~105°C |
| Insulation color | White |
| Shell (Shielding material) | Copper Alloy |
| Material flammability rating | UL94 V-0 |
| Gender | Receptacle |
| Parameter | Value |
|---|---|
| Package | Tray |
| Features | Board Guide |
| Shielding | Shielded |
| Termination | Solder |
| Mating cycles | 1500 |
| Contact finish | Gold |
| Specifications | USB 2.0 |
| Number of ports | 1 |
The MUSBD11130 is a 4-contact USB-B receptacle from the Amphenol ICC MUSB series, rated for USB 2.0 at 1.5 A. The IP67 rating and gold-plated contacts support 1500 mating cycles, suiting it for industrial or outdoor panel applications where dust and moisture ingress must be excluded.
The MUSBD11130 is a USB-B (USB TYPE-B) receptacle.
The MUSBD11130 is rated IP67 - Dust Tight and Waterproof.
Yes, the MUSBD11130 is RoHS Compliant.
