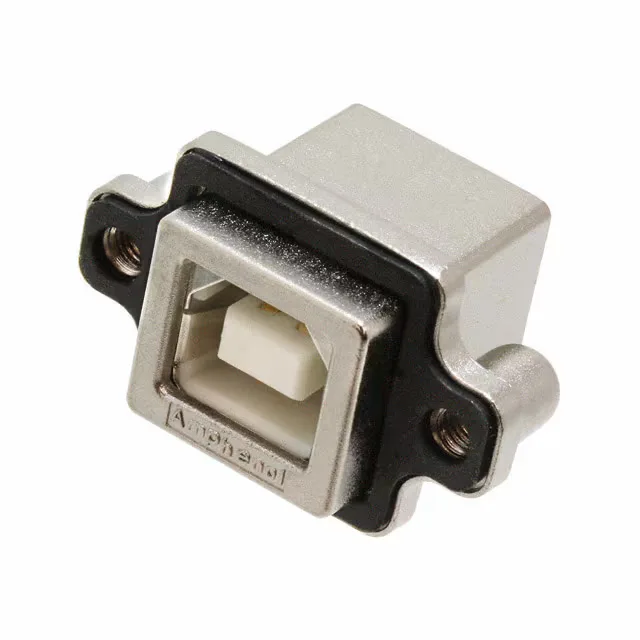

Amphenol ICC MUSB series USB-B receptacle, order code MUSBD111M0, 4 contacts, USB 2.0, IP67, 1.5 A, panel mount through-hole right-angle, solder termination, gold-plated contacts, shielded.
| Parameter | Value |
|---|---|
| Series | MUSB |
| Mounting | Panel Mount, Through Hole, Right Angle |
| Connector type | USB-B (USB TYPE-B) |
| Current rating | 1.5A |
| Positions | 4 |
| IP rating | IP67 - Dust Tight, Waterproof |
| Mounting feature | Flange, Horizontal |
| Operating temperature | -40°C~105°C |
| Insulation color | White |
| Shell (Shielding material) | Copper Alloy |
| Material flammability rating | UL94 V-0 |
| Gender | Receptacle |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Board Guide |
| Shielding | Shielded |
| Termination | Solder |
| Mating cycles | 1500 |
| Contact finish | Gold |
| Specifications | USB 2.0 |
| Number of ports | 1 |
The MUSBD111M0 is the 4-contact USB-B receptacle in Amphenol ICC's MUSB series, specified for USB 2.0 and rated IP67 when mated.
Rated for 1500 mating cycles, the MUSBD111M0 uses gold-plated contacts to maintain contact resistance over repeated insertions.
The MUSBD111M0 is RoHS compliant.
