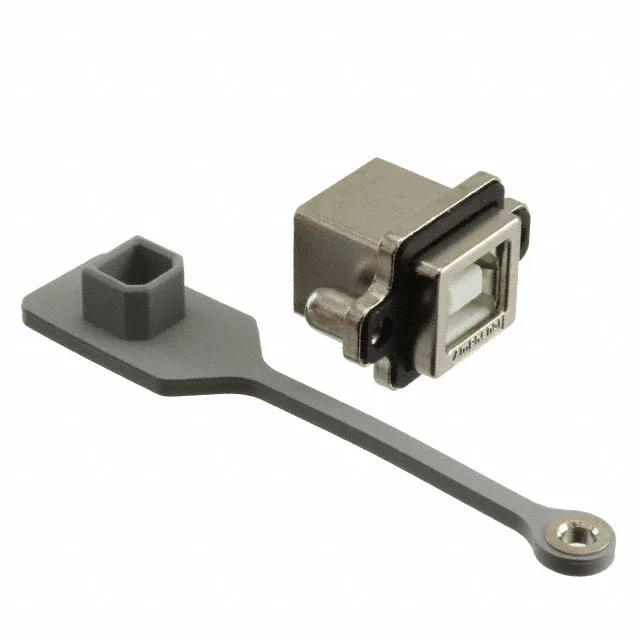

MUSBD111M1 — Amphenol product photo
Amphenol

MUSBD111M1 Amphenol ICC USB-B Receptacle IP67

MPNMUSBD111M1
Active

Amphenol ICC MUSB series USB-B receptacle, order code MUSBD111M1, 4 contacts, single port, USB 2.0, IP67 sealed, 1.5 A, gold contact finish, panel mount through-hole right-angle, solder termination.

$12.7300Ref. price · indicative, final on quote
MUSBD111M1 datasheet
StockIn Stock (23)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

MUSBD111M1 Technical Specifications
ParameterValue
SeriesMUSB
Mounting typePanel Mount, Through Hole, Right Angle
Connector typeUSB-B (USB TYPE-B)
Current rating1.5A
Positions4
Ingress protectionIP67 - Dust Tight, Waterproof
Mounting featureFlange, Horizontal
Operating temperature-40°C~105°C
Insulation colorWhite
Shell (Shielding material)Copper Alloy
Material flammability ratingUL94 V-0
GenderReceptacle
PackageBox
FeaturesBoard Guide, Cover
ShieldingShielded
TerminationSolder
Mating cycles1500
Contact finishGold
SpecificationsUSB 2.0
Number of ports1

Product details

IP67 USB-B with 1500-cycle gold contacts

The MUSBD111M1 is the 4-contact USB-B receptacle in Amphenol ICC's MUSB series, rated USB 2.0 and sealed to IP67 when mated with the matching plug.

Sealed shell and cycle life

The IP67 seal and 1500 mating cycles make the MUSBD111M1 suited for panel-mounted industrial or outdoor USB connections where dust and washdown ingress must be blocked at the connector interface. The board guide and cover aid alignment during panel installation; the flange, horizontal mount and right-angle through-hole termination fix the receptacle to the panel and PCB simultaneously.

Frequently asked questions

What is the mating cycle rating for the MUSBD111M1?

The receptacle is rated for 1500 mating cycles.
