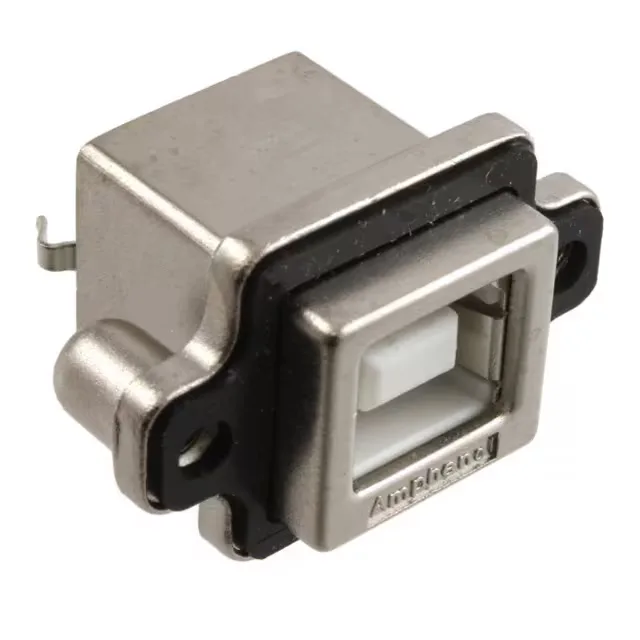

MUSBD511N0 — Amphenol product photo
Amphenol

MUSBD511N0 Amphenol ICC USB-B Receptacle, IP67, 4 Pos

MPNMUSBD511N0
Active

Amphenol ICC MUSB USB-B receptacle, order code MUSBD511N0, 4 contacts, USB 2.0, IP67, shielded, gold-plated contacts, panel mount through-hole, solder termination, board lock.

$10.7100Ref. price · indicative, final on quote
MUSBD511N0 datasheet
StockIn Stock (23)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

MUSBD511N0 Technical Specifications
ParameterValue
SeriesMUSB
Mounting typePanel Mount, Through Hole
Connector typeUSB-B (USB TYPE-B)
Current rating1.5A
Positions4
Ingress protectionIP67 - Dust Tight, Waterproof
Mounting featureFlange, Vertical
Operating temperature-40°C~105°C
Insulation colorWhite
Shell (Shielding material)Copper Alloy
Material flammability ratingUL94 V-0
GenderReceptacle
PackageBox
FeaturesBoard Lock
ShieldingShielded
TerminationSolder
Mating cycles1500
Contact finishGold
SpecificationsUSB 2.0
Number of ports1

Product details

IP67-rated USB-B with 1500 mating cycles

The MUSBD511N0 is a 4-contact USB-B receptacle in Amphenol ICC's MUSB series, rated USB 2.0 and sealed to IP67 when mated.

Sealing and mechanical endurance

The IP67 rating holds when the receptacle is mated with the corresponding IP67-rated plug — the flange and vertical mounting orientation allow a gasket or panel seal to be compressed against the enclosure face. Rated for 1500 mating cycles, the gold-over-nickel contact finish resists corrosion and fretting in repeated connect-disconnect service.

Frequently asked questions

What is the ingress protection rating?

IP67 — dust tight and waterproof when mated with the corresponding IP67-rated plug.
