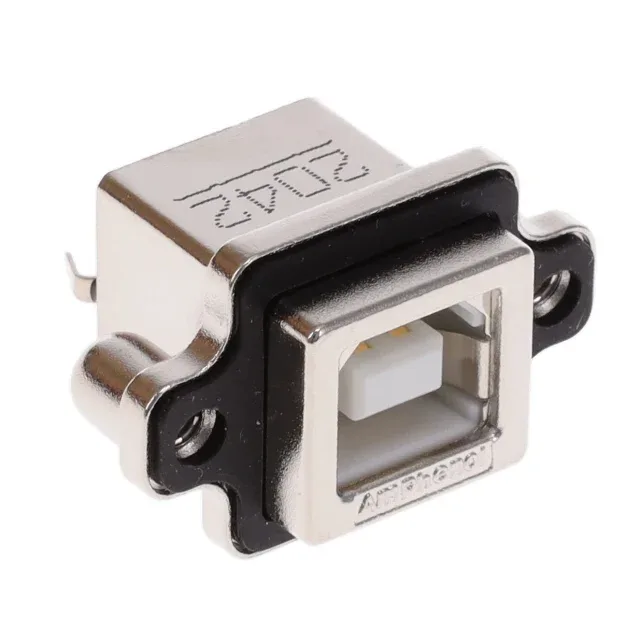

MUSBD511N1 — Amphenol product photo
Amphenol

MUSBD511N1 Amphenol ICC USB-B Receptacle, IP67, 1.5A

MPNMUSBD511N1
Active

Amphenol ICC MUSB series USB-B (USB TYPE-B) receptacle, order code MUSBD511N1, 4 contacts, 1.5 A, IP67, gold contact finish, panel mount through-hole vertical, solder termination.

$11.9600Ref. price · indicative, final on quote
MUSBD511N1 datasheet
StockIn Stock (27)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

MUSBD511N1 Technical Specifications
ParameterValue
SeriesMUSB
Mounting typePanel Mount, Through Hole
Connector typeUSB-B (USB TYPE-B)
Current rating1.5A
Positions4
Ingress protectionIP67 - Dust Tight, Waterproof
Mounting featureFlange, Vertical
Operating temperature-40°C~105°C
Insulation colorWhite
Shell (Shielding material)Copper Alloy
Material flammability ratingUL94 V-0
GenderReceptacle
PackageBox
FeaturesBoard Lock, Cover
ShieldingShielded
TerminationSolder
Mating cycles1500
Contact finishGold
SpecificationsUSB 2.0
Number of ports1

Product details

Sealed USB-B for panel-mount applications

The MUSBD511N1 is the 4-contact USB 2.0 Type-B receptacle in Amphenol ICC's MUSB series, specified for IP67-sealed panel-mount installations. Gold-plated contacts are rated 1.5 A and 1500 mating cycles; the shielded shell with board lock and cover secures the connector against vibration and washdown exposure.

IP67 sealing and panel-mount hardware

The IP67 rating covers dust ingress and temporary water immersion when mated with the corresponding MUSB plug. The flange, vertical mounting feature and board lock hold the receptacle through the panel cutout while the through-hole solder tails anchor the signal and shield connections to the PCB.

Frequently asked questions

What is the gender and connector type of MUSBD511N1?

The MUSBD511N1 is a USB-B (USB TYPE-B) receptacle with 4 contacts.
