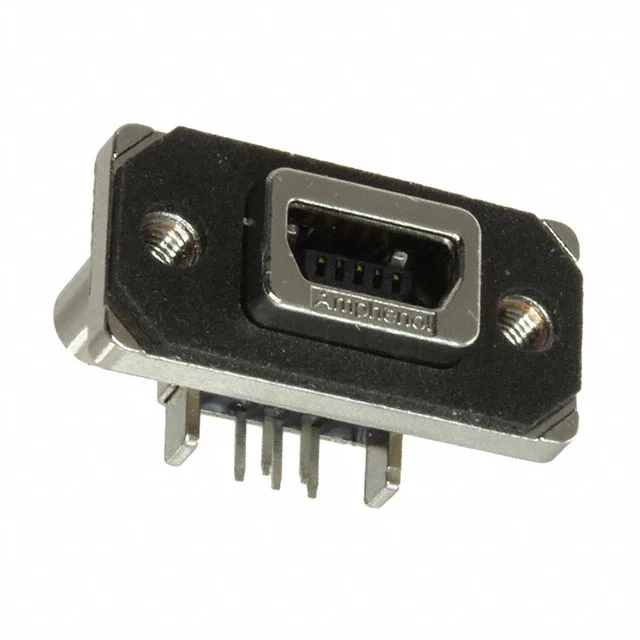

IP67-sealed USB 2.0 mini-AB receptacle
The MUSBE151M0 is the 5-contact IP67-sealed member of Amphenol ICC's MUSB series, a USB 2.0 mini-AB receptacle with a shielded copper-alloy shell and a UL94 V-0 rated black housing.
Amphenol MUSBE151M0 USB 2.0 Mini-AB Receptacle, IP67
MPNMUSBE151M0
Active
Amphenol ICC (Commercial Products) MUSB series USB 2.0 mini-AB receptacle, order code MUSBE151M0, 5 contacts, 1 A, IP67, shielded, gold-plated contacts, panel mount through-hole right-angle, solder termination.
$13.9100Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesMUSB
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | MUSB |
| Mounting | Panel Mount, Through Hole, Right Angle |
| Connector type | USB - mini AB |
| Current rating | 1A |
| Positions | 5 |
| IP rating | IP67 - Dust Tight, Waterproof |
| Mounting feature | Flange, Horizontal |
| Operating temperature | -40°C~105°C |
| Insulation color | Black |
| Shell (Shielding material) | Copper Alloy |
| Material flammability rating | UL94 V-0 |
| Gender | Receptacle |
All specifications
| Parameter | Value |
|---|---|
| Package | Box |
| Shielding | Shielded |
| Termination | Solder |
| Mating cycles | 5000 |
| Contact finish | Gold |
| Specifications | USB 2.0 |
| Number of ports | 1 |
Product details
Frequently asked questions
What is the gender and connector type of MUSBE151M0?
The MUSBE151M0 is a USB 2.0 mini-AB receptacle.
What compliance documentation is available for MUSBE151M0?
The MUSBE151M0 is RoHS compliant.
