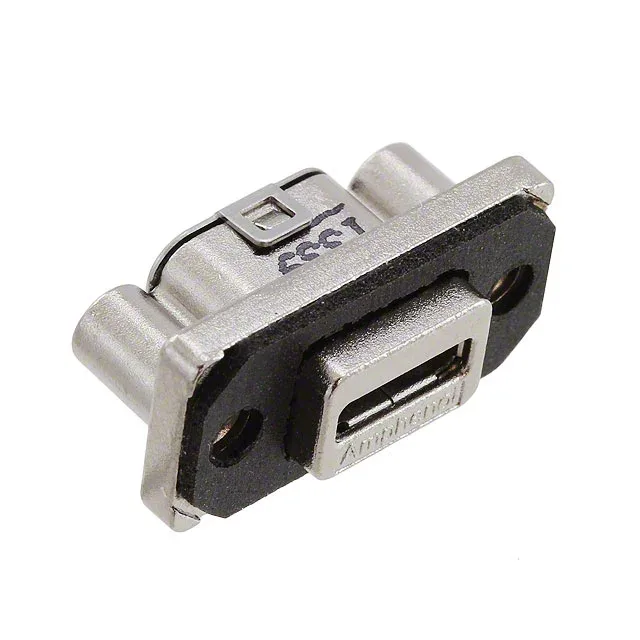

Amphenol ICC MUSB series USB micro AB receptacle, order code MUSBK15230, 5 contacts, USB 2.0, IP67, shielded, gold-plated contacts, panel mount through-hole right-angle, solder termination.
| Parameter | Value |
|---|---|
| Series | MUSB |
| Mounting | Panel Mount, Through Hole, Right Angle |
| Connector type | USB - micro AB |
| Current rating | 0.5A, 1A |
| Positions | 5 |
| IP rating | IP67 - Dust Tight, Waterproof |
| Mounting feature | Flange, Horizontal |
| Operating temperature | -40°C~105°C |
| Insulation color | Gray |
| Shell (Shielding material) | Steel, Stainless |
| Material flammability rating | UL94 V-0 |
| Gender | Receptacle |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Shielding | Shielded |
| Termination | Solder |
| Mating cycles | 10000 |
| Contact finish | Gold |
| Specifications | USB 2.0 |
| Number of ports | 1 |
The MUSBK15230 is the 5-contact USB micro AB receptacle in Amphenol ICC's MUSB series, rated USB 2.0 and sealed to IP67 when mated. It carries gold-plated contacts rated 0.5 A and 1 A, with a shielded steel/stainless shell and a UL94 V-0 gray insulation body.
The MUSBK15230 is a receptacle (female) connector.
