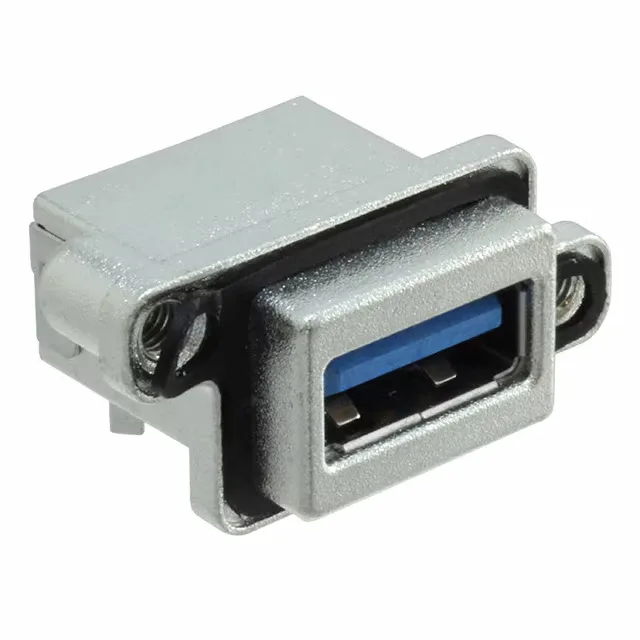

Amphenol ICC MUSBR series USB-A receptacle, order code MUSBR-3193-M0, 9 contacts, USB 3.2 Gen 1, shielded, IP67, panel mount through-hole right-angle, solder termination, gold-plated contacts.
| Parameter | Value |
|---|---|
| Series | MUSBR |
| Mounting | Panel Mount, Through Hole, Right Angle |
| Connector type | USB-A (USB TYPE-A) |
| Current rating | 0.25A, 1.8A |
| Positions | 9 |
| IP rating | IP67 - Dust Tight, Waterproof |
| Mounting feature | Flange, Horizontal |
| Operating temperature | -40°C ~ 105°C |
| Insulation color | Blue |
| Shell (Shielding material) | Steel, Stainless |
| Material flammability rating | UL94 V-0 |
| Gender | Receptacle |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Board Guide |
| Shielding | Shielded |
| Termination | Solder |
| Contact finish | Gold |
| Specifications | USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0)) |
| Number of ports | 1 |
The MUSBR-3193-M0 is a 9-contact USB-A receptacle from the Amphenol ICC MUSBR series, supporting USB 3.2 Gen 1 (SuperSpeed) data rates. Rated IP67 dust-tight and waterproof, the receptacle carries 0.25 A on the signal contacts and 1.8 A on the power contacts, with a steel and stainless shielded shell.
