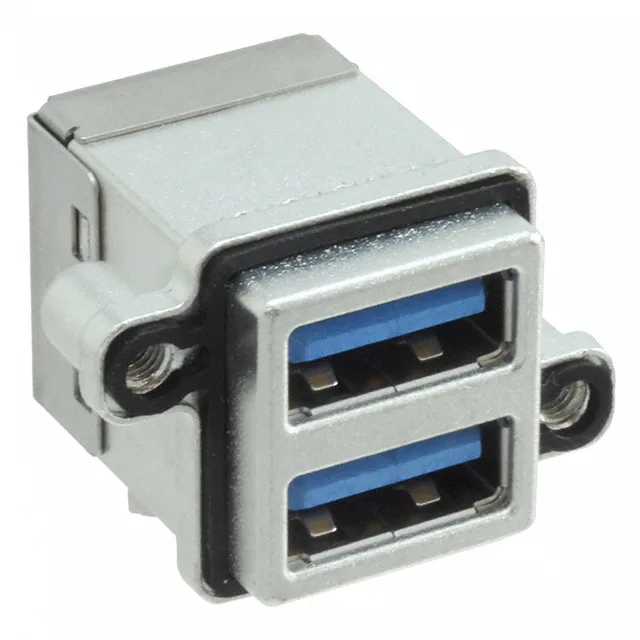

Amphenol ICC MUSBR series USB-A stacked receptacle, order code MUSBR-4193-M0, 18 contacts, dual port, USB 3.2 Gen 1, gold-plated contacts, shielded, panel mount through-hole right-angle, solder termination, IP67.
| Parameter | Value |
|---|---|
| Series | MUSBR |
| Mounting | Panel Mount, Through Hole, Right Angle |
| Connector type | USB-A (USB TYPE-A), Stacked |
| Current rating | 0.25A, 1.8A |
| Positions | 18 |
| IP rating | IP67 - Dust Tight, Waterproof |
| Mounting feature | Flange, Horizontal |
| Operating temperature | -40°C ~ 105°C |
| Insulation color | Blue |
| Shell (Shielding material) | Steel, Stainless |
| Material flammability rating | UL94 V-0 |
| Gender | Receptacle |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Board Guide |
| Shielding | Shielded |
| Termination | Solder |
| Contact finish | Gold |
| Specifications | USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0)) |
| Number of ports | 2 |
The MUSBR-4193-M0 is the 18-contact, dual-port USB-A stacked receptacle in Amphenol ICC's MUSBR series, rated for USB 3.2 Gen 1 (5 Gbps) signalling. Gold-plated contacts carry 1.8 A per power contact and 0.25 A per signal contact; the shielded steel shell with board guide provides EMC containment and alignment during panel installation.
It is a USB-A (USB TYPE-A) stacked receptacle, 18 contacts, 2 ports.
