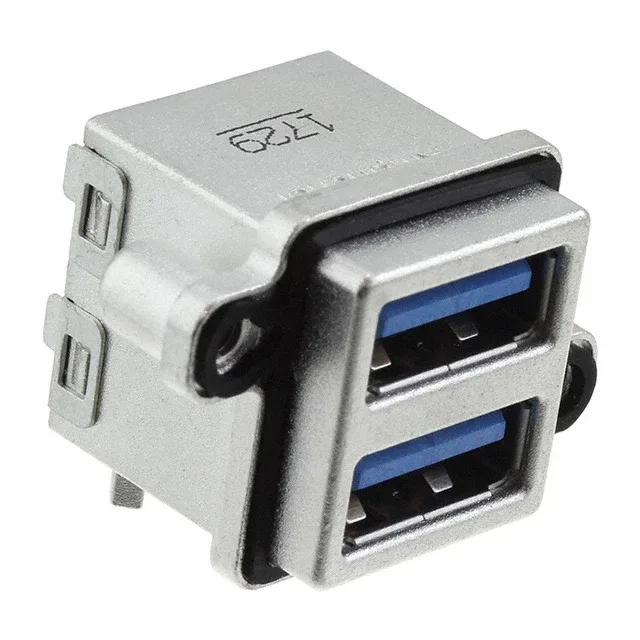

Amphenol ICC MUSBR series USB-A (USB TYPE-A) stacked receptacle, order code MUSBR-4593-M0, 18 contacts, 2 ports, USB 3.2 Gen 1, shielded, IP67, panel mount through-hole, solder termination, gold contact finish.
| Parameter | Value |
|---|---|
| Series | MUSBR |
| Mounting | Panel Mount, Through Hole |
| Connector type | USB-A (USB TYPE-A), Stacked |
| Current rating | 0.25A, 1.8A |
| Positions | 18 |
| IP rating | IP67 - Dust Tight, Waterproof |
| Mounting feature | Flange, Vertical |
| Operating temperature | -40°C ~ 105°C |
| Insulation color | Blue |
| Shell (Shielding material) | Steel, Stainless |
| Material flammability rating | UL94 V-0 |
| Gender | Receptacle |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Board Guide |
| Shielding | Shielded |
| Termination | Solder |
| Contact finish | Gold |
| Specifications | USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0)) |
| Number of ports | 2 |
The MUSBR-4593-M0 is a stacked USB-A receptacle from Amphenol ICC's MUSBR series, offering two ports in a single panel-mount package with 18 contacts supporting USB 3.2 Gen 1 data rates.
The IP67 ingress protection rating applies only when the receptacle is mated with the corresponding plug — the flange-mount gasket seals the panel opening, but the unmated port should be capped to maintain the seal.
The IP67 rating is valid only when the MUSBR-4593-M0 is mated with its corresponding plug — the flange gasket seals the panel opening, but the unmated port is not sealed.
The MUSBR-4593-M0 is RoHS Compliant. No UL, IEC, or REACH documentation is listed in the available records.
