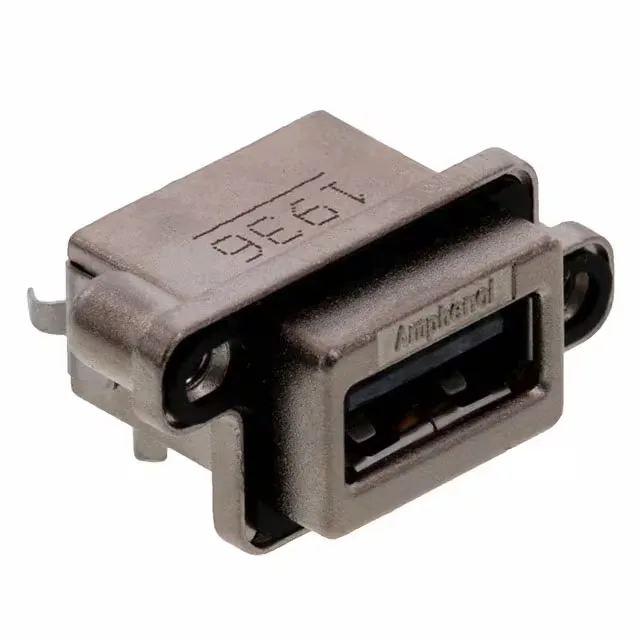

MUSBRA51140 — Amphenol product photo
Amphenol

MUSBRA51140 Amphenol ICC USB-A Receptacle, 4-Pos, IP67

MPNMUSBRA51140
Active

Amphenol ICC MUSBR series USB-A (USB TYPE-A) receptacle, order code MUSBRA51140, 4 contacts, USB 2.0, IP67, shielded, gold-plated contacts, panel mount through-hole, solder termination.

$8.9700Ref. price · indicative, final on quote
MUSBRA51140 datasheet
StockIn Stock (23)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

MUSBRA51140 Technical Specifications
ParameterValue
SeriesMUSBR
Mounting typePanel Mount, Through Hole
Connector typeUSB-A (USB TYPE-A)
Current rating1.5A
Positions4
Ingress protectionIP67 - Dust Tight, Waterproof
Mounting featureFlange, Vertical
Operating temperature-40°C~105°C
Insulation colorBlack
Shell (Shielding material)Steel, Stainless
Material flammability ratingUL94 V-0
GenderReceptacle
PackageBox
FeaturesBoard Lock
ShieldingShielded
TerminationSolder
Mating cycles1500
Contact finishGold
SpecificationsUSB 2.0
Number of ports1

Product details

Panel-mount USB-A with IP67 seal

The MUSBRA51140 is the 4-contact USB-A receptacle in Amphenol ICC's MUSBR series, rated USB 2.0 and sealed to IP67 when mated. Gold-plated contacts are rated 1.5 A per circuit, and the shielded steel shell with board lock holds the connector in place during solder termination.

Sealing and mounting details

The flange-mount vertical orientation mates through a panel cutout; the IP67 rating covers dust ingress and temporary water immersion when the mating plug is locked in place. The UL94 V-0 rated housing and steel shielding material suit installations inside enclosures that require a flame rating.
