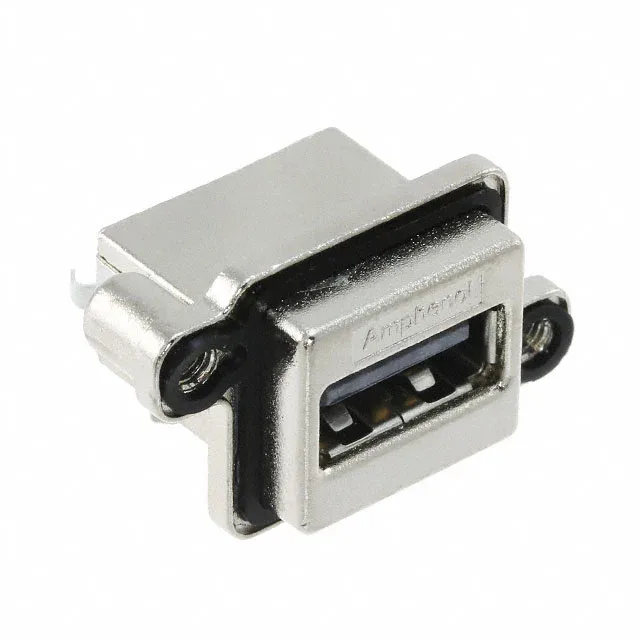

MUSBRA511M0 — Amphenol product photo
Amphenol

MUSBRA511M0 Amphenol ICC USB-A Receptacle IP67 4-Pos

MPNMUSBRA511M0
Active

Amphenol ICC MUSBR USB-A (USB TYPE-A) receptacle, order code MUSBRA511M0, 4 contacts, 1.5 A, IP67 dust-tight and waterproof, gold contact finish, shielded, panel mount through-hole, solder termination.

$10.5500Ref. price · indicative, final on quote
MUSBRA511M0 datasheet
StockIn Stock (25)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

MUSBRA511M0 Technical Specifications
ParameterValue
SeriesMUSBR
Mounting typePanel Mount, Through Hole
Connector typeUSB-A (USB TYPE-A)
Current rating1.5A
Positions4
Ingress protectionIP67 - Dust Tight, Waterproof
Mounting featureFlange, Vertical
Operating temperature-40°C~105°C
Insulation colorBlack
Shell (Shielding material)Steel, Stainless
Material flammability ratingUL94 V-0
GenderReceptacle
PackageBox
FeaturesBoard Lock
ShieldingShielded
TerminationSolder
Mating cycles1500
Contact finishGold
SpecificationsUSB 2.0
Number of ports1

Product details

Panel-mount USB-A with IP67 sealing

The MUSBRA511M0 is the 4-contact USB-A receptacle in Amphenol ICC's MUSBR series, mounting vertically through a panel flange with through-hole solder tails. Rated 1.5 A per contact, the shielded steel shell carries gold-plated contacts rated for 1500 mating cycles, and the housing seals to IP67 when mated.

Sealed USB for harsh environments

The IP67 rating and board lock suit this receptacle for panel-mount applications where dust or water ingress is a concern — the flange and vertical orientation fix the connector to the panel face, and the stainless shell resists corrosion.

Frequently asked questions

What compliance documentation does Amphenol ICC (Commercial Products) provide for MUSBRA511M0?

The MUSBRA511M0 is RoHS compliant per Amphenol ICC documentation.
