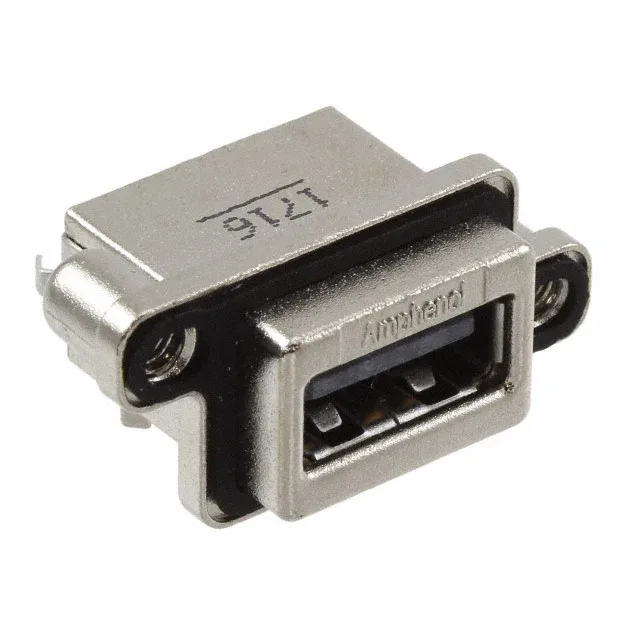

Amphenol ICC MUSBR USB-A (USB TYPE-A) receptacle, order code MUSBRA511R0, 4 contacts, USB 2.0, IP67, shielded, gold contact finish, panel mount through hole, solder termination, box package.
| Parameter | Value |
|---|---|
| Series | MUSBR |
| Mounting | Panel Mount, Through Hole |
| Connector type | USB-A (USB TYPE-A) |
| Current rating | 1.5A |
| Positions | 4 |
| IP rating | IP67 - Dust Tight, Waterproof |
| Mounting feature | Flange, Vertical |
| Operating temperature | -40°C~105°C |
| Insulation color | Black |
| Shell (Shielding material) | Steel, Stainless |
| Material flammability rating | UL94 V-0 |
| Gender | Receptacle |
| Parameter | Value |
|---|---|
| Package | Box |
| Features | Board Lock |
| Shielding | Shielded |
| Termination | Solder |
| Mating cycles | 1500 |
| Contact finish | Gold |
| Specifications | USB 2.0 |
| Number of ports | 1 |
The MUSBRA511R0 is the 4-contact USB-A receptacle in Amphenol ICC's MUSBR series, specified for USB 2.0 and sealed to IP67 when mated.
IP67 rating (dust tight, waterproof) and a vertical flange mounting feature suit this receptacle for panel installations where the mated interface must resist moisture ingress. Rated for 1500 mating cycles, with gold contacts that sustain low contact resistance over repeated connect-disconnect duty.
