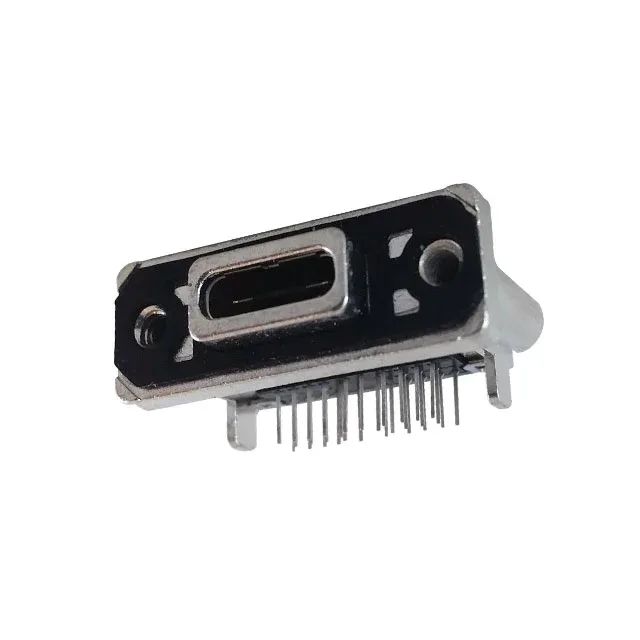

Amphenol ICC MUSBR series USB-C receptacle, order code MUSBRM1C130, 24 contacts, single port, shielded, panel mount through-hole right-angle, solder termination, gold contact finish, IP67 rated.
| Parameter | Value |
|---|---|
| Series | MUSBR |
| Mounting type | Panel Mount, Through Hole, Right Angle |
| Connector type | USB-C (USB TYPE-C) |
| Current rating | 0.25A, 1.25A, 5A |
| Positions | 24 |
| Ingress protection | IP67 - Dust Tight, Waterproof |
| Mounting feature | Flange, Horizontal |
| Operating temperature | -40°C ~ 105°C |
| Insulation color | Black |
| Shell (Shielding material) | Steel, Stainless |
| Material flammability rating | UL94 V-0 |
| Gender | Receptacle |
| Package | Tray |
| Shielding | Shielded |
| Termination | Solder |
| Contact finish | Gold |
| Number of ports | 1 |
The MUSBRM1C130 is a 24-contact USB-C receptacle from the MUSBR series, rated for a combined current of 5 A on the power contacts, 1.25 A on the sideband contacts, and 0.25 A on the signal contacts. Gold-plated contacts and a shielded steel/stainless shell support reliable signal integrity in industrial environments.
The MUSBRM1C130 is rated IP67 for dust-tight and waterproof operation when mated.
Amphenol ICC provides RoHS compliance documentation for the MUSBRM1C130.
