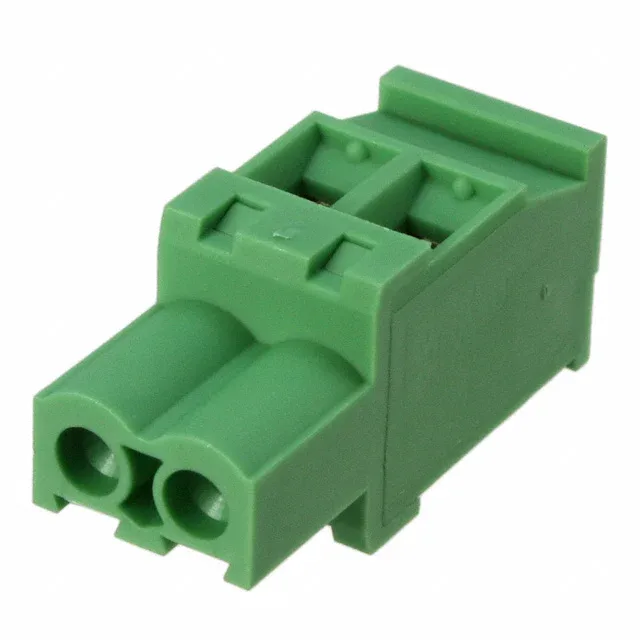

Amphenol TS02715B0000G, 02-500 series plug, 2 positions, 0.197" (5.00mm) pitch, 12 A, 300 V, tin-plated female sockets, free hanging, screw - rising cage clamp termination, Bulk.
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | 02-500 |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 12 A |
| Plug wire entry | 270° |
| Wire strip length | 6-7mm |
| Wire gauge or range - AWG | 12-24 AWG |
| Wire gauge or range - mm2 | 1-2.5mm² |
| Operating temperature | -40°C ~ 115°C |
| Color | Green |
| Contact material | Copper Alloy |
| Parameter | Value |
|---|---|
| Housing material | Thermoplastic Resin |
| Insulation height | 1.024\" (26.01mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.197\" (5.00mm) |
| Package | Bulk |
| Features | Retention Latches (Non-Wire Side) |
| Screw size | M3 |
| Torque - screw | 0.4 Nm (3.5 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw - Rising Cage Clamp |
| Positions | 2 |
| Positions per level | 2 |
| Contact mating finish | Tin |
The TS02715B0000G is a 2-position plug from the 02-500 series, terminated via a rising cage clamp that accepts 12-24 AWG (1-2.5 mm²) solid or stranded wire after a 6-7 mm strip.
The plug mates with a 02-500 series header (same pitch, 5.00 mm) and locks via the retention latches on the non-wire side — the insulation height of 1.024" (26.01 mm) sets the clearance above the header surface.
Pricing and stock are confirmed at RFQ against the BOM quantity. The part is available in Bulk packaging.
