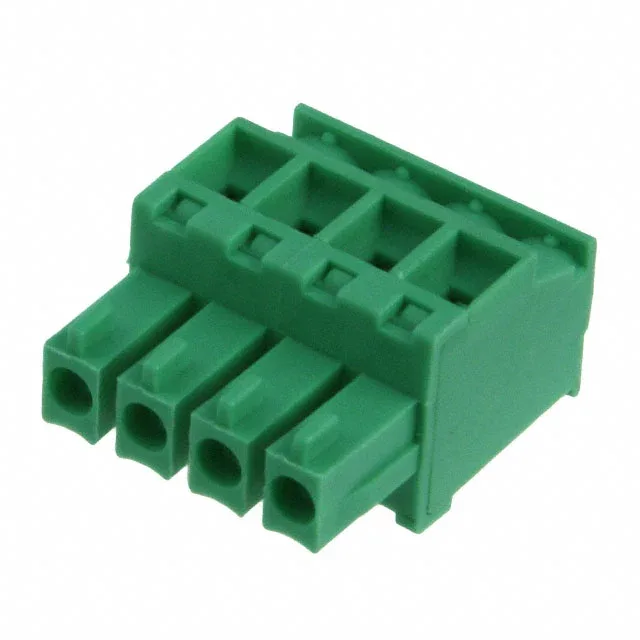

4-position plug with rising cage clamp
The TS04315A0000G is a 4-circuit plug from the 02-381 series, terminated via a screw-driven rising cage clamp that accepts 16-28 AWG (0.5-1.5 mm²) wire with a 6-7 mm strip length.
Terminal block plug, TS04315A0000G, 4 positions, 0.150" (3.81mm) pitch, 8 A, 300 V, tin-plated female sockets, screw rising cage clamp, free hanging, 90° wire entry, bulk.
$1.3900Ref. price · indicative, final on quote
StockIn Stock (23)
Lead timeIn Stock wk
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | 02-381 |
| Mounting type | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 8 A |
| Plug wire entry | 90° |
| Wire strip length | 6-7mm |
| Wire gauge or range - AWG | 16-28 AWG |
| Wire gauge or range - mm2 | 0.5-1.5mm² |
| Operating temperature | -40°C~115°C |
| Color | Green |
| Contact material | Copper Alloy |
| Housing material | Thermoplastic Resin |
| Insulation height | 0.751\" (19.08mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.150\" (3.81mm) |
| Package | Bulk |
| Screw size | M2 |
| Torque - screw | 0.2 Nm (1.7 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw - Rising Cage Clamp |
| Positions | 4 |
| Positions per level | 4 |
| Contact mating finish | Tin |
