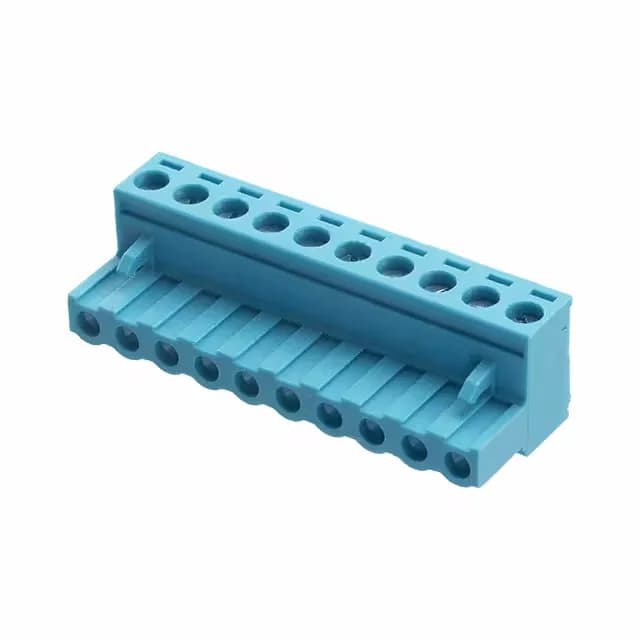

CUI Devices TBP01P1-508-10BE
MPNTBP01P1-508-10BE
Active
TERMINAL BLOCK, PLUGGABLE, 5.08
$2.8300Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesTBP01P1-508
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — typically 7–15 days door-to-door
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | TBP01P1-508 |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Voltage - IEC | 320 V |
| Current - UL | 16 A |
| Current - IEC | 20A |
| Plug wire entry | 180° |
| Wire strip length | 7mm |
| Wire gauge or range - AWG | 12-28 AWG |
| Wire gauge or range - mm2 | 2.5mm² |
| Operating temperature | -40°C~105°C |
All specifications
| Parameter | Value |
|---|---|
| Color | Blue |
| Contact material | Copper Alloy |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.591\" (15.00mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.200\" (5.08mm) |
| Package | Bag |
| Features | Retention Latches (Non-Wire Side) |
| Screw size | M3 |
| Torque - screw | 0.5 Nm (4.4 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw - Rising Cage Clamp |
| Positions | 10 |
| Positions per level | 10 |
| Contact mating finish | Nickel |
