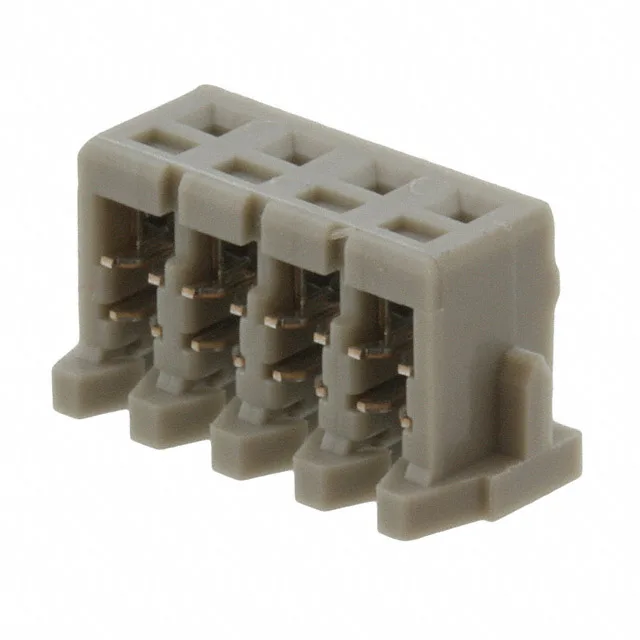

04KR-6H-P — JST product photo
JST

JST 04KR-6H-P KR Series IDC Socket, 4 Pos, 2.00mm Pitch

MPN04KR-6H-P
Active

JST KR Series IDC socket, 4 positions, 0.079" (2.00mm) pitch, 1 row, 26 AWG, tin contacts, free-hanging in-line mount, bulk.

$0.4100Ref. price · indicative, final on quote
04KR-6H-P datasheet
StockIn Stock (15)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

04KR-6H-P Technical Specifications
ParameterValue
SeriesKR
Wire typeDiscrete
GenderFemale Socket
Mounting typeFree Hanging (In-Line)
Connector typeSocket
Wire gauge26 AWG
Cable terminationIDC
ColorGray
Pitch0.079\" (2.00mm)
PackageBulk
Contact finishTin
Rows1
Positions4

Product details

4-Position IDC Socket for 26 AWG Discrete Wire

The JST 04KR-6H-P is a 4-position IDC socket in the KR series, designed for mass-termination of discrete 26 AWG wire without stripping or crimping.

IDC Termination — No Stripping, No Crimping

This eliminates stripping and crimping steps, speeding harness assembly when you have a batch of same-gauge wires. The free-hanging housing mates with the matching KR-series pin header on the board.

Frequently asked questions

Where can I buy the JST 04KR-6H-P connector?

The 04KR-6H-P is sourced to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time — no stock-holding claim is made here.

What are the pitch, wire gauge, and contact finish for 04KR-6H-P?

The 04KR-6H-P has a 0.079" (2.00mm) pitch, accepts 26 AWG discrete wire, and uses tin-plated female contacts.
