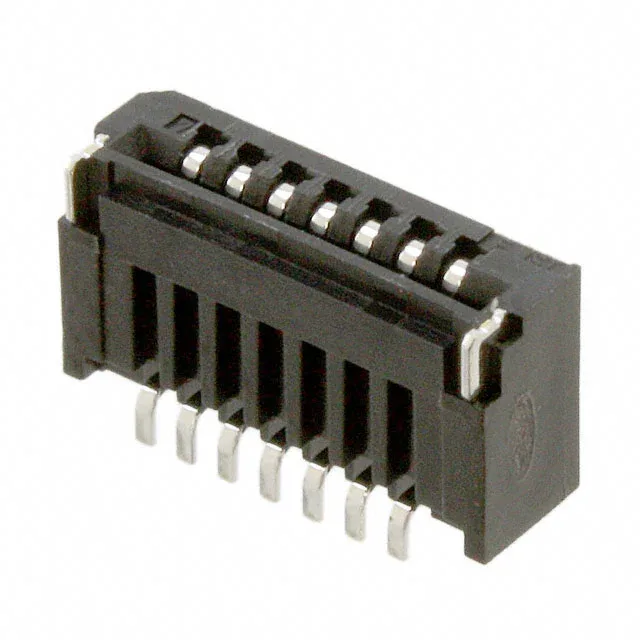

07FMN-SMT-A-TF — JST product photo
JST

07FMN-SMT-A-TF JST FMN 7-Pos 1mm FFC Connector

MPN07FMN-SMT-A-TF
Active

JST Sales America Inc., FMN series, 7-position FFC connector, 0.039" (1.00mm) pitch, top-contact, surface-mount right-angle, tin-plated phosphor bronze contacts, rated 0.5 A per contact at 50 V, Low Insertion Force (LIF) actuation, UL94 V-0 black PA6T housing.

$0.5700Ref. price · indicative, final on quote
07FMN-SMT-A-TF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

07FMN-SMT-A-TF Technical Specifications
ParameterValue
SeriesFMN
Mounting typeSurface Mount, Right Angle
Cable end typeStraight
Flat flex typeFFC
Connector (Contact type)Contacts, Top
Voltage rating50V
Current rating0.5A
Operating temperature-25°C ~ 85°C
Housing colorBlack
Contact materialPhosphor Bronze
Housing materialPolyamide (PA6T), Nylon 6T
Height above board0.118\" (3.00mm)
Material flammability ratingUL94 V-0
Pitch0.039\" (1.00mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesLow Insertion Force (LIF)
TerminationSolder
Contact finishTin
FFC, FCB thickness0.30mm
Positions7

Product details

The 07FMN-SMT-A-TF is a 7-position, 1.00 mm pitch FFC connector from JST's FMN series, designed for top-contact FFC termination. The Low Insertion Force (LIF) design reduces wear on the FFC pads during repeated mating cycles.

SMT right-angle mounting with tin-plated contacts

The connector mounts surface-mount, right-angle, with the contacts on the top side of the FFC insertion slot.

Active production, RoHS non-compliant — plan accordingly

Sourced per RFQ — confirm current pricing and availability at quote time.

Frequently asked questions

Is 07FMN-SMT-A-TF RoHS compliant?

No, the 07FMN-SMT-A-TF is listed as RoHS non-compliant. If your application requires RoHS compliance, consider the alternate 07FMN-SMT-A-TF(LF)(SN) which is the lead-free version in the same FMN series.

What is the pitch and position count of 07FMN-SMT-A-TF?

The pitch is 0.039" (1.00 mm) and the number of positions is 7. This mates with a 7-conductor FFC of 0.30 mm thickness.
