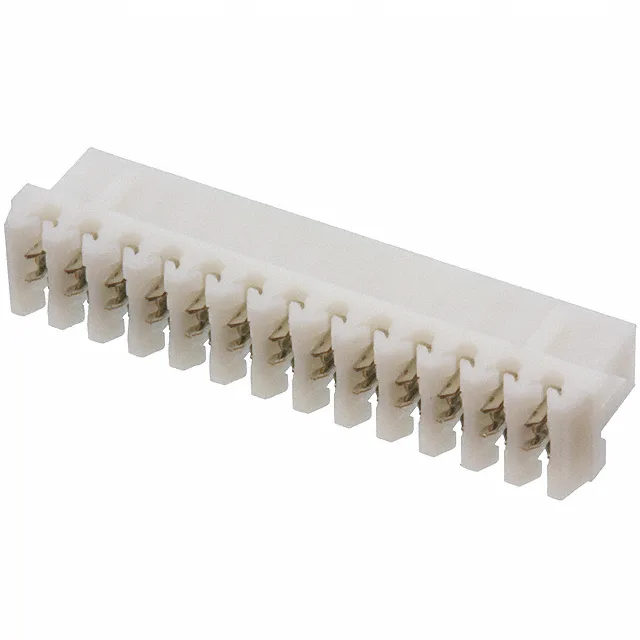

13KR-D6S-P — JST product photo
JST

JST KRD 13KR-D6S-P Socket, 13 Pos IDC, 2.00mm Pitch

MPN13KR-D6S-P
Active

JST KRD series, 13KR-D6S-P, 13-position IDC socket, 0.079" (2.00mm) pitch, 1 row, tin contacts, 26 AWG, free-hanging right-angle, bulk.

$1.0300Ref. price · indicative, final on quote
13KR-D6S-P datasheet
StockIn Stock (26)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

13KR-D6S-P Technical Specifications
ParameterValue
SeriesKRD
Wire typeDiscrete
GenderFemale Socket
Mounting typeFree Hanging (In-Line), Right Angle
Connector typeSocket
Wire gauge26 AWG
Cable terminationIDC
ColorNatural
Pitch0.079\" (2.00mm)
PackageBulk
Contact finishTin
Rows1
Positions13

Product details

13-Position IDC Socket for 2.00 mm Ribbon

The 0.079" (2.00mm) pitch matches standard 2.00 mm ribbon cable — the pitch has to match the ribbon, or the IDC slots will bite between conductors instead of onto them. This is a free-hanging, right-angle exit connector, natural colour, in bulk packaging.

Termination and Wire Fit

IDC termination is a mass-termination process — the connector is pressed onto the wire using a fixture, displacing the insulation to make contact with the conductor. The specified wire gauge is 26 AWG discrete; using a different gauge risks poor contact or conductor damage.

Frequently asked questions

What wire gauge works with the 13KR-D6S-P?

The 13KR-D6S-P is specified for 26 AWG discrete wire with IDC termination. The insulation displacement slots are sized for this gauge.
