JST Sales America Inc. FLZ series, 30-position 0.020" (0.50mm) pitch FFC/FPC connector, bottom contact, ZIF slide lock, SMT right-angle, tin-plated phosphor bronze contacts, rated 0.5 A per contact at 50 V, UL94 V-0 housing.
| Parameter | Value |
|---|---|
| Series | FLZ |
| Mounting | Surface Mount, Right Angle |
| Cable end type | Tapered |
| Flat flex type | FFC, FPC |
| Connector (Contact type) | Contacts, Bottom |
| Voltage rating | 50V |
| Current rating | 0.5A |
| Operating temperature | -25°C ~ 85°C |
| Housing color | Natural |
| Actuator color | Black |
| Contact material | Phosphor Bronze |
| Housing material | Polyamide (PA6T), Nylon 6T |
| Parameter | Value |
|---|---|
| Actuator material | Polyamide (PA6T), Nylon 6T |
| Height above board | 0.079\" (2.00mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.020\" (0.50mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Termination | Solder |
| Contact finish | Tin |
| Locking feature | Slide Lock |
| FFC, FCB thickness | 0.30mm |
| Positions | 30 |

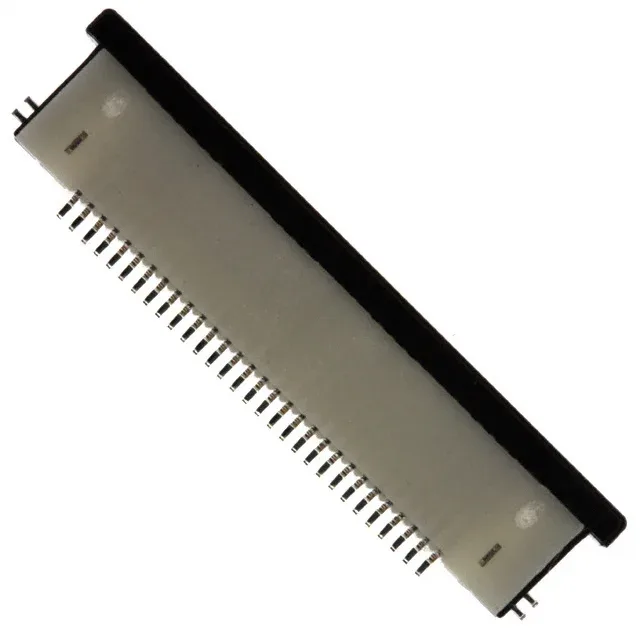

The 30FLZ-RSM2-TB is a 30-position, 0.020" (0.50mm) pitch FFC/FPC connector from JST's FLZ series. The 0.30 mm FPC thickness requirement is fixed — the contact beam is designed for that specific thickness; a thinner or thicker flex won't wipe the pad correctly.
The natural PA6T housing and black PA6T actuator are both rated UL94 V-0 for flammability.
0.020" (0.50mm) pitch, 30 positions — bottom contact style. The FPC thickness must be 0.30 mm for proper contact wipe.
